| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006408_48165cztM0_level2.fits | modeM0/AS1C09_004T05_9000006408_48165cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,163,537,280 | 231,439,680 |
| Size | 1.1 GB | 220.7 MB |
| Events in quadrant A | 19,766,589 | 1,952,271 |
| Events in quadrant B | 3,267,879 | 229 |
| Events in quadrant C | 9,177,520 | 1,939,290 |
| Events in quadrant D | 9,341,687 | 1,785,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72828 | 160 |
| B | 0 | 20356 | 41 |
| C | 0 | 41790 | 107 |
| D | 0 | 42419 | 98 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19300 | 634 | 3.284974% |
| B | 19313 | 19311 | 99.989644% |
| C | 19298 | 247 | 1.279925% |
| D | 19302 | 290 | 1.502435% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20452 | 19312 | 21 | 21 | 0.10% | 0.11% |  |
| B | 20451 | 19245 | 0 | 0 | 0.00% | 0.00% |  |
| C | 20452 | 19314 | 122 | 122 | 0.60% | 0.63% |  |
| D | 20452 | 19316 | 194 | 194 | 0.95% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11439223 | 26491.16 | 2087 | 2039 | 431.7 |
| A | 0 | 31 | 94779 | 214.81 | 2087 | 2039 | 431.7 |
| A | 13 | 248 | 78221 | 176.46 | 2087 | 2039 | 431.7 |
| B | 2 | 177 | 2669089 | 89770.6 | 139 | 135 | 29.7 |
| B | 4 | 21 | 24366 | 815.01 | 139 | 135 | 29.7 |
| B | 0 | 186 | 5686 | 186.71 | 139 | 135 | 29.7 |
| C | 12 | 2 | 990316 | 2049.35 | 2058 | 2065 | 482.2 |
| C | 14 | 254 | 70845 | 142.63 | 2058 | 2065 | 482.2 |
| C | 14 | 67 | 48724 | 96.76 | 2058 | 2065 | 482.2 |
| D | 1 | 232 | 420331 | 812.01 | 2062 | 1990 | 515.2 |
| D | 12 | 1 | 225101 | 433.06 | 2062 | 1990 | 515.2 |
| D | 13 | 29 | 160844 | 308.34 | 2062 | 1990 | 515.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

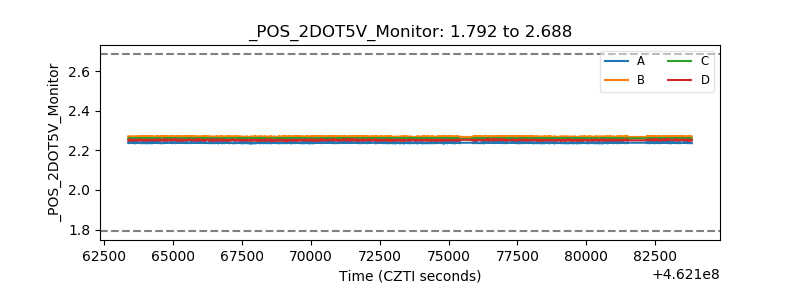

| +2.5 Volts monitor |  |

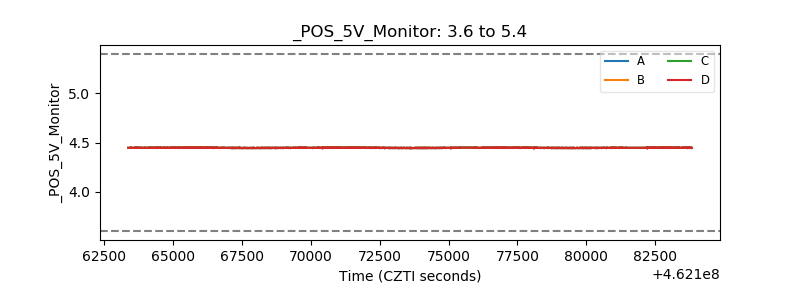

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
