| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006408_48169cztM0_level2.fits | modeM0/AS1C09_004T05_9000006408_48169cztM0_level2_quad_clean.evt |
| Size (bytes) | 388,480,320 | 76,682,880 |
| Size | 370.5 MB | 73.1 MB |
| Events in quadrant A | 6,749,257 | 650,789 |
| Events in quadrant B | 1,015,402 | 39,501 |
| Events in quadrant C | 2,594,143 | 630,265 |
| Events in quadrant D | 3,557,786 | 587,673 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24074 | 1 |
| B | 0 | 6290 | 1 |
| C | 0 | 12094 | 1 |
| D | 0 | 14662 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5873 | 329 | 5.601907% |
| B | 5874 | 5874 | 100.000000% |
| C | 5874 | 41 | 0.697991% |
| D | 5874 | 140 | 2.383384% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6948 | 5874 | 120 | 120 | 1.73% | 2.04% |  |
| B | 6948 | 5873 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6949 | 5875 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6949 | 5875 | 79 | 79 | 1.14% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3996709 | 30253.72 | 636 | 624 | 132.1 |
| A | 13 | 248 | 256750 | 1939.09 | 636 | 624 | 132.1 |
| A | 0 | 243 | 12377 | 88.98 | 636 | 624 | 132.1 |
| B | 2 | 177 | 812346 | 79956.81 | 40 | 39 | 10.2 |
| B | 0 | 200 | 21420 | 2104.57 | 40 | 39 | 10.2 |
| B | 4 | 21 | 5816 | 568.64 | 40 | 39 | 10.2 |
| C | 12 | 2 | 42937 | 285.92 | 633 | 636 | 147.9 |
| C | 12 | 249 | 29878 | 197.65 | 633 | 636 | 147.9 |
| C | 11 | 16 | 22127 | 145.26 | 633 | 636 | 147.9 |
| D | 2 | 165 | 540839 | 3384.51 | 637 | 616 | 159.6 |
| D | 12 | 1 | 265102 | 1657.01 | 637 | 616 | 159.6 |
| D | 7 | 67 | 56823 | 352.14 | 637 | 616 | 159.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

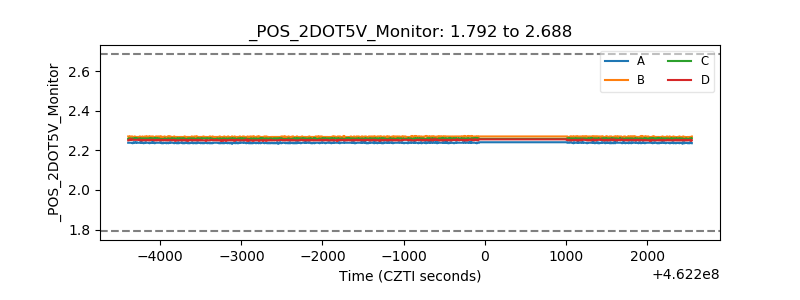

| +2.5 Volts monitor |  |

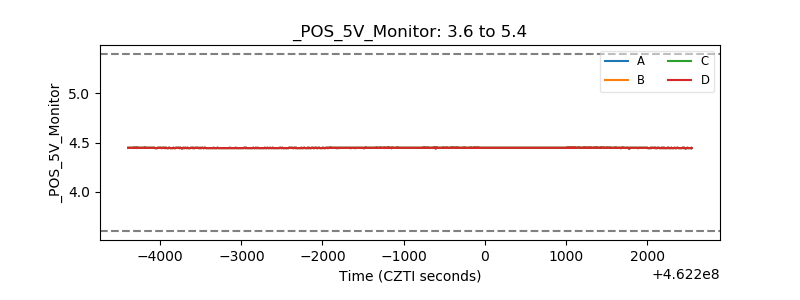

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
