| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006408_48170cztM0_level2.fits | modeM0/AS1C09_004T05_9000006408_48170cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,520,000 | 72,823,680 |
| Size | 474.5 MB | 69.5 MB |
| Events in quadrant A | 6,705,794 | 665,109 |
| Events in quadrant B | 1,052,460 | 120 |
| Events in quadrant C | 2,700,775 | 659,406 |
| Events in quadrant D | 7,490,697 | 465,195 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23910 | 2 |
| B | 0 | 6436 | 1 |
| C | 0 | 12347 | 1 |
| D | 0 | 26242 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5934 | 239 | 4.027637% |
| B | 5935 | 5934 | 99.983151% |
| C | 5935 | 33 | 0.556024% |
| D | 5935 | 1708 | 28.778433% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7084 | 5935 | 49 | 49 | 0.69% | 0.83% |  |
| B | 7084 | 5934 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7085 | 5936 | 7 | 7 | 0.10% | 0.12% |  |
| D | 7085 | 5936 | 1307 | 1307 | 18.45% | 22.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4107378 | 30140.36 | 657 | 643 | 136.3 |
| A | 0 | 243 | 15513 | 109.13 | 657 | 643 | 136.3 |
| A | 0 | 31 | 13327 | 93.09 | 657 | 643 | 136.3 |
| B | 2 | 177 | 817809 | 76106.6 | 43 | 42 | 10.7 |
| B | 0 | 200 | 26616 | 2473.15 | 43 | 42 | 10.7 |
| B | 4 | 21 | 16581 | 1539.22 | 43 | 42 | 10.7 |
| C | 12 | 2 | 68923 | 444.14 | 654 | 656 | 153.7 |
| C | 11 | 16 | 21840 | 137.82 | 654 | 656 | 153.7 |
| C | 0 | 207 | 21035 | 132.58 | 654 | 656 | 153.7 |
| D | 12 | 1 | 4268785 | 30460.85 | 564 | 548 | 140.1 |
| D | 2 | 165 | 747599 | 5331.43 | 564 | 548 | 140.1 |
| D | 8 | 48 | 90996 | 645.49 | 564 | 548 | 140.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

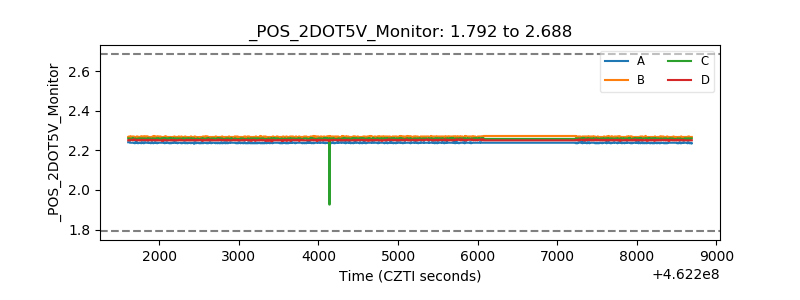

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
