| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006408_48175cztM0_level2.fits | modeM0/AS1C09_004T05_9000006408_48175cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,232,000 | 97,686,720 |
| Size | 508.5 MB | 93.2 MB |
| Events in quadrant A | 8,237,812 | 825,308 |
| Events in quadrant B | 1,350,382 | 50,366 |
| Events in quadrant C | 3,410,051 | 815,811 |
| Events in quadrant D | 6,130,634 | 723,693 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29528 | 1 |
| B | 0 | 8306 | 1 |
| C | 0 | 16154 | 1 |
| D | 0 | 23969 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7742 | 379 | 4.895376% |
| B | 7742 | 7742 | 100.000000% |
| C | 7742 | 27 | 0.348747% |
| D | 7741 | 909 | 11.742669% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7742 | 7742 | 50 | 50 | 0.65% | 0.65% |  |
| B | 7741 | 7741 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7742 | 7742 | 8 | 8 | 0.10% | 0.10% |  |
| D | 7741 | 7741 | 564 | 564 | 7.29% | 7.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4870093 | 27759.31 | 837 | 815 | 175.4 |
| A | 13 | 248 | 96995 | 548.31 | 837 | 815 | 175.4 |
| A | 13 | 254 | 16077 | 87.01 | 837 | 815 | 175.4 |
| B | 2 | 177 | 1067466 | 82411.21 | 54 | 52 | 13.0 |
| B | 4 | 21 | 24514 | 1888.62 | 54 | 52 | 13.0 |
| B | 0 | 186 | 15171 | 1167.28 | 54 | 52 | 13.0 |
| C | 12 | 2 | 60021 | 298.28 | 844 | 848 | 198.4 |
| C | 0 | 207 | 20369 | 98.4 | 844 | 848 | 198.4 |
| C | 11 | 16 | 15870 | 75.72 | 844 | 848 | 198.4 |
| D | 2 | 165 | 2410188 | 11981.3 | 802 | 776 | 201.1 |
| D | 12 | 2 | 315351 | 1564.29 | 802 | 776 | 201.1 |
| D | 2 | 249 | 50714 | 248.33 | 802 | 776 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

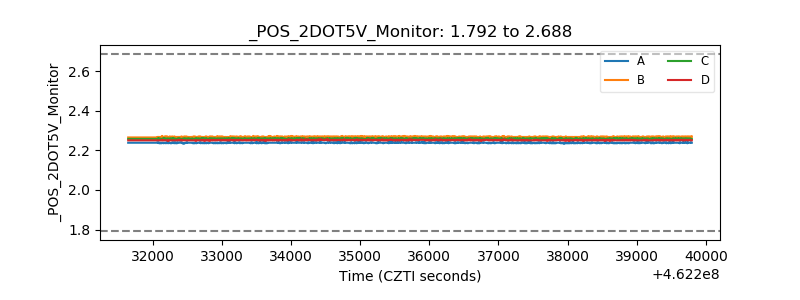

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
