| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006414_48188cztM0_level2.fits | modeM0/AS1A13_037T05_9000006414_48188cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,232,320 | 80,867,520 |
| Size | 495.2 MB | 77.1 MB |
| Events in quadrant A | 7,560,751 | 712,954 |
| Events in quadrant B | 1,222,860 | 138 |
| Events in quadrant C | 2,948,343 | 729,968 |
| Events in quadrant D | 6,951,428 | 530,228 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27259 | 2 |
| B | 0 | 7467 | 2 |
| C | 0 | 13989 | 2 |
| D | 0 | 25617 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6820 | 376 | 5.513196% |
| B | 6820 | 6817 | 99.956012% |
| C | 6820 | 7 | 0.102639% |
| D | 6819 | 1461 | 21.425429% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6821 | 107 | 107 | 1.40% | 1.57% |  |
| B | 7664 | 6819 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7665 | 6821 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7664 | 6820 | 1315 | 1315 | 17.16% | 19.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4622308 | 29239.75 | 747 | 730 | 158.1 |
| A | 13 | 248 | 34159 | 211.5 | 747 | 730 | 158.1 |
| A | 13 | 254 | 13678 | 81.92 | 747 | 730 | 158.1 |
| B | 2 | 177 | 939103 | 79305.13 | 48 | 47 | 11.8 |
| B | 4 | 21 | 52129 | 4398.43 | 48 | 47 | 11.8 |
| B | 0 | 200 | 24354 | 2052.77 | 48 | 47 | 11.8 |
| C | 12 | 2 | 19041 | 104.66 | 742 | 747 | 174.8 |
| C | 3 | 233 | 11615 | 62.18 | 742 | 747 | 174.8 |
| C | 14 | 254 | 11252 | 60.1 | 742 | 747 | 174.8 |
| D | 8 | 129 | 3300629 | 20085.46 | 648 | 627 | 164.3 |
| D | 2 | 165 | 413615 | 2513.65 | 648 | 627 | 164.3 |
| D | 5 | 222 | 218215 | 1324.35 | 648 | 627 | 164.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

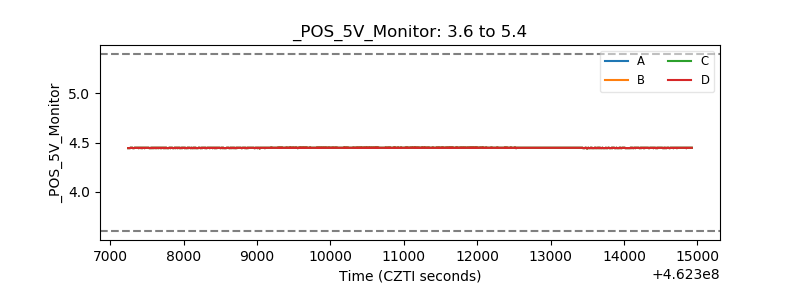

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
