| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006414_48195cztM0_level2.fits | modeM0/AS1A13_037T05_9000006414_48195cztM0_level2_quad_clean.evt |
| Size (bytes) | 749,727,360 | 73,990,080 |
| Size | 715.0 MB | 70.6 MB |
| Events in quadrant A | 7,361,583 | 731,917 |
| Events in quadrant B | 1,162,710 | 44,012 |
| Events in quadrant C | 3,030,819 | 723,007 |
| Events in quadrant D | 15,659,856 | 257,635 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27522 | 1 |
| B | 0 | 7217 | 1 |
| C | 0 | 14050 | 1 |
| D | 0 | 51296 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6854 | 253 | 3.691275% |
| B | 6855 | 6855 | 100.000000% |
| C | 6855 | 76 | 1.108680% |
| D | 6854 | 5959 | 86.941932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7664 | 6854 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7664 | 6854 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7665 | 6856 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7663 | 6853 | 4864 | 4864 | 63.47% | 70.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4080611 | 25602.99 | 761 | 744 | 159.4 |
| A | 10 | 255 | 326678 | 2045.38 | 761 | 744 | 159.4 |
| A | 13 | 254 | 14152 | 84.14 | 761 | 744 | 159.4 |
| B | 2 | 177 | 947923 | 81375.8 | 47 | 45 | 11.6 |
| B | 0 | 186 | 11148 | 953.2 | 47 | 45 | 11.6 |
| B | 4 | 21 | 10598 | 905.98 | 47 | 45 | 11.6 |
| C | 0 | 207 | 32365 | 176.32 | 756 | 757 | 179.3 |
| C | 12 | 2 | 19881 | 106.68 | 756 | 757 | 179.3 |
| C | 14 | 254 | 16217 | 86.24 | 756 | 757 | 179.3 |
| D | 8 | 129 | 13313342 | 167283.21 | 307 | 298 | 79.6 |
| D | 2 | 165 | 697549 | 8761.21 | 307 | 298 | 79.6 |
| D | 12 | 233 | 160753 | 2016.18 | 307 | 298 | 79.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

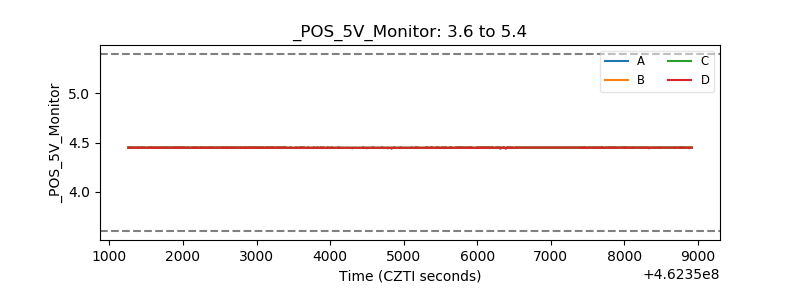

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
