| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_065T05_9000006412_48186cztM0_level2.fits | modeM0/AS1A13_065T05_9000006412_48186cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,507,840 | 87,675,840 |
| Size | 518.3 MB | 83.6 MB |
| Events in quadrant A | 7,548,353 | 766,092 |
| Events in quadrant B | 1,126,121 | 45,932 |
| Events in quadrant C | 3,249,258 | 754,090 |
| Events in quadrant D | 7,684,425 | 631,383 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26845 | 2 |
| B | 0 | 6930 | 2 |
| C | 0 | 13961 | 2 |
| D | 0 | 27270 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6499 | 463 | 7.124173% |
| B | 6499 | 6499 | 100.000000% |
| C | 6499 | 97 | 1.492537% |
| D | 6499 | 1514 | 23.295892% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6499 | 89 | 89 | 1.16% | 1.37% |  |
| B | 7658 | 6498 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7659 | 6500 | 17 | 17 | 0.22% | 0.26% |  |
| D | 7659 | 6499 | 1203 | 1203 | 15.71% | 18.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4468874 | 27195.01 | 785 | 769 | 164.3 |
| A | 13 | 248 | 35979 | 214.3 | 785 | 769 | 164.3 |
| A | 13 | 254 | 11841 | 67.39 | 785 | 769 | 164.3 |
| B | 2 | 177 | 897569 | 78143.22 | 48 | 47 | 11.5 |
| B | 0 | 200 | 15096 | 1310.25 | 48 | 47 | 11.5 |
| B | 4 | 21 | 7464 | 645.76 | 48 | 47 | 11.5 |
| C | 14 | 254 | 129897 | 699.96 | 781 | 786 | 184.5 |
| C | 12 | 2 | 58917 | 315.15 | 781 | 786 | 184.5 |
| C | 0 | 207 | 6682 | 31.96 | 781 | 786 | 184.5 |
| D | 2 | 165 | 4024205 | 22160.15 | 714 | 691 | 181.6 |
| D | 5 | 222 | 259684 | 1426.45 | 714 | 691 | 181.6 |
| D | 12 | 7 | 223912 | 1229.43 | 714 | 691 | 181.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

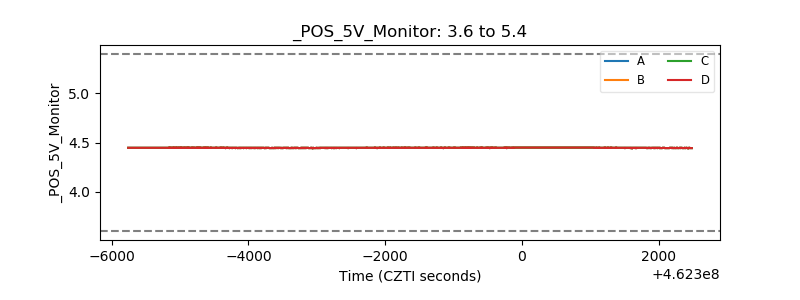

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
