| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006416_48212cztM0_level2.fits | modeM0/AS1C09_004T05_9000006416_48212cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,450,560 | 77,054,400 |
| Size | 359.0 MB | 73.5 MB |
| Events in quadrant A | 6,341,248 | 656,110 |
| Events in quadrant B | 1,138,659 | 40,863 |
| Events in quadrant C | 2,554,964 | 629,579 |
| Events in quadrant D | 3,431,277 | 588,816 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23624 | 1 |
| B | 0 | 6754 | 1 |
| C | 0 | 12122 | 1 |
| D | 0 | 14099 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5939 | 234 | 3.940057% |
| B | 5940 | 5940 | 100.000000% |
| C | 5940 | 42 | 0.707071% |
| D | 5940 | 88 | 1.481481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6964 | 5939 | 17 | 17 | 0.24% | 0.29% |  |
| B | 6964 | 5939 | 2 | 2 | 0.03% | 0.03% |  |
| C | 6965 | 5941 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6965 | 5940 | 30 | 30 | 0.43% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3805647 | 28153.6 | 650 | 637 | 135.2 |
| A | 13 | 254 | 12136 | 85.08 | 650 | 637 | 135.2 |
| A | 3 | 137 | 7303 | 49.32 | 650 | 637 | 135.2 |
| B | 2 | 177 | 812404 | 76723.65 | 42 | 41 | 10.6 |
| B | 10 | 7 | 76128 | 7186.04 | 42 | 41 | 10.6 |
| B | 5 | 255 | 34559 | 3260.05 | 42 | 41 | 10.6 |
| C | 12 | 2 | 22111 | 143.17 | 638 | 638 | 150.0 |
| C | 14 | 254 | 17272 | 110.91 | 638 | 638 | 150.0 |
| C | 7 | 207 | 15352 | 98.11 | 638 | 638 | 150.0 |
| D | 2 | 165 | 542544 | 3370.84 | 644 | 625 | 160.8 |
| D | 12 | 128 | 135595 | 839.54 | 644 | 625 | 160.8 |
| D | 2 | 249 | 108345 | 670.04 | 644 | 625 | 160.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

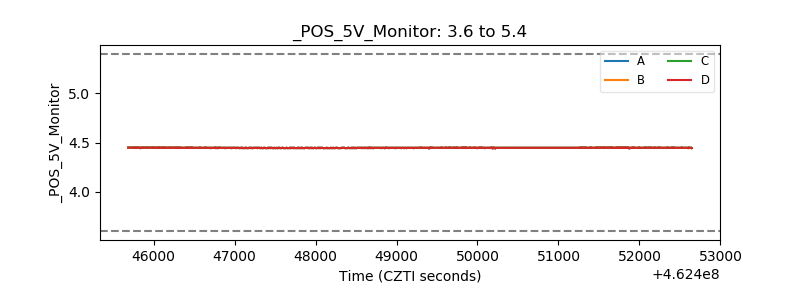

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
