| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006416_48215cztM0_level2.fits | modeM0/AS1C09_004T05_9000006416_48215cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,684,800 | 103,772,160 |
| Size | 533.8 MB | 99.0 MB |
| Events in quadrant A | 7,770,109 | 683,688 |
| Events in quadrant B | 5,607,373 | 709,636 |
| Events in quadrant C | 2,811,064 | 686,944 |
| Events in quadrant D | 4,058,228 | 636,553 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27309 | 4 |
| B | 0 | 21067 | 1 |
| C | 0 | 12737 | 1 |
| D | 0 | 16204 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6090 | 591 | 9.704433% |
| B | 6091 | 194 | 3.185027% |
| C | 6091 | 53 | 0.870136% |
| D | 6091 | 164 | 2.692497% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7245 | 6090 | 340 | 340 | 4.69% | 5.58% |  |
| B | 7246 | 6092 | 47 | 47 | 0.65% | 0.77% |  |
| C | 7246 | 6092 | 18 | 18 | 0.25% | 0.30% |  |
| D | 7246 | 6092 | 107 | 107 | 1.48% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4211789 | 30662.67 | 656 | 644 | 137.3 |
| A | 14 | 235 | 566380 | 4119.3 | 656 | 644 | 137.3 |
| A | 15 | 174 | 345876 | 2513.74 | 656 | 644 | 137.3 |
| B | 10 | 7 | 1989695 | 15271.12 | 676 | 656 | 130.2 |
| B | 0 | 200 | 420109 | 3220.41 | 676 | 656 | 130.2 |
| B | 0 | 198 | 118653 | 905.94 | 676 | 656 | 130.2 |
| C | 12 | 2 | 100805 | 639.03 | 676 | 678 | 156.7 |
| C | 6 | 247 | 31020 | 193.65 | 676 | 678 | 156.7 |
| C | 14 | 254 | 12412 | 74.89 | 676 | 678 | 156.7 |
| D | 2 | 165 | 926082 | 5509.87 | 676 | 656 | 168.0 |
| D | 12 | 7 | 191991 | 1139.18 | 676 | 656 | 168.0 |
| D | 2 | 249 | 129657 | 768.06 | 676 | 656 | 168.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

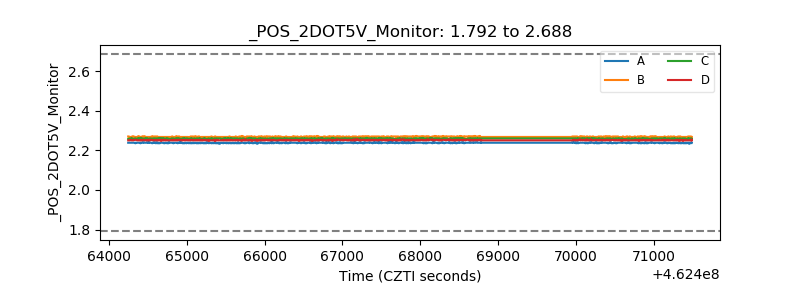

| +2.5 Volts monitor |  |

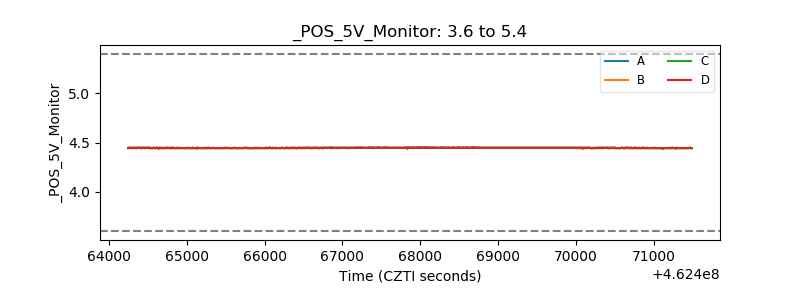

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
