| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006416_48220cztM0_level2.fits | modeM0/AS1C09_004T05_9000006416_48220cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,181,120 | 131,601,600 |
| Size | 622.9 MB | 125.5 MB |
| Events in quadrant A | 9,861,779 | 863,832 |
| Events in quadrant B | 4,718,969 | 887,944 |
| Events in quadrant C | 3,617,993 | 861,094 |
| Events in quadrant D | 5,338,890 | 795,728 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34853 | 0 |
| B | 0 | 19837 | 0 |
| C | 0 | 17054 | 0 |
| D | 0 | 21554 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8281 | 745 | 8.996498% |
| B | 8281 | 145 | 1.750996% |
| C | 8281 | 17 | 0.205289% |
| D | 8281 | 142 | 1.714769% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8281 | 8281 | 530 | 530 | 6.40% | 6.40% |  |
| B | 8281 | 8281 | 62 | 62 | 0.75% | 0.75% |  |
| C | 8281 | 8281 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8281 | 8281 | 101 | 101 | 1.22% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5029115 | 27060.6 | 881 | 862 | 185.8 |
| A | 14 | 235 | 1194101 | 6421.67 | 881 | 862 | 185.8 |
| A | 3 | 14 | 97611 | 520.67 | 881 | 862 | 185.8 |
| B | 4 | 21 | 569087 | 3205.63 | 900 | 871 | 177.3 |
| B | 0 | 200 | 230704 | 1296.62 | 900 | 871 | 177.3 |
| B | 5 | 255 | 154977 | 869.4 | 900 | 871 | 177.3 |
| C | 12 | 2 | 52160 | 242.08 | 894 | 896 | 211.8 |
| C | 14 | 254 | 46825 | 216.89 | 894 | 896 | 211.8 |
| C | 12 | 249 | 12439 | 54.51 | 894 | 896 | 211.8 |
| D | 2 | 165 | 1001854 | 4471.29 | 891 | 863 | 223.9 |
| D | 4 | 222 | 670522 | 2991.28 | 891 | 863 | 223.9 |
| D | 2 | 249 | 67778 | 298.9 | 891 | 863 | 223.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

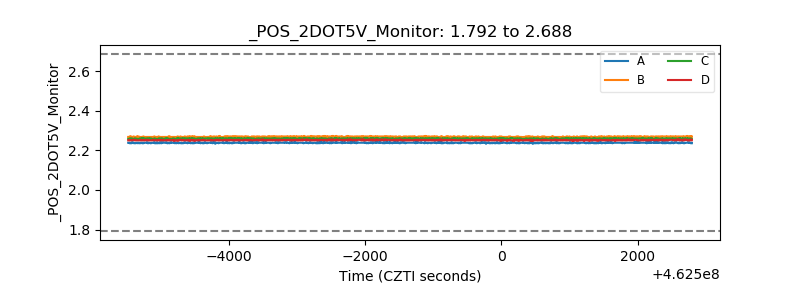

| +2.5 Volts monitor |  |

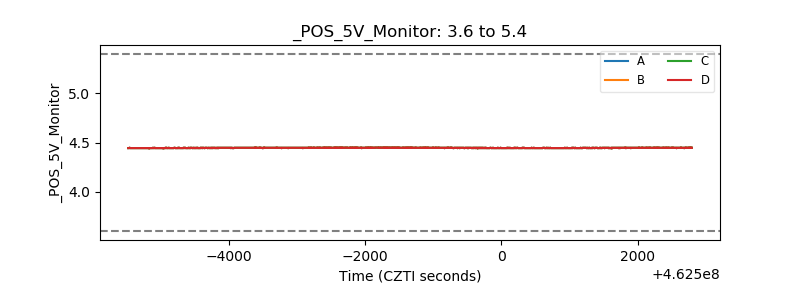

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
