| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48229cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48229cztM0_level2_quad_clean.evt |
| Size (bytes) | 202,239,360 | 35,510,400 |
| Size | 192.9 MB | 33.9 MB |
| Events in quadrant A | 2,502,436 | 240,042 |
| Events in quadrant B | 1,704,140 | 233,546 |
| Events in quadrant C | 1,550,129 | 233,818 |
| Events in quadrant D | 1,571,267 | 220,935 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8779 | 1 |
| B | 0 | 6347 | 1 |
| C | 0 | 5936 | 1 |
| D | 0 | 5985 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2011 | 285 | 14.172054% |
| B | 2011 | 380 | 18.896072% |
| C | 2011 | 236 | 11.735455% |
| D | 2010 | 149 | 7.412935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3151 | 2011 | 34 | 34 | 1.08% | 1.69% |  |
| B | 3151 | 2011 | 235 | 235 | 7.46% | 11.69% |  |
| C | 3151 | 2011 | 146 | 146 | 4.63% | 7.26% |  |
| D | 3150 | 2010 | 35 | 35 | 1.11% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1455818 | 25488.09 | 264 | 258 | 57.1 |
| A | 13 | 248 | 17282 | 298.1 | 264 | 258 | 57.1 |
| A | 0 | 243 | 4953 | 82.21 | 264 | 258 | 57.1 |
| B | 4 | 21 | 639576 | 12587.29 | 245 | 237 | 50.8 |
| B | 0 | 200 | 60459 | 1185.65 | 245 | 237 | 50.8 |
| B | 5 | 255 | 15471 | 299.93 | 245 | 237 | 50.8 |
| C | 12 | 2 | 559442 | 9194.4 | 252 | 253 | 60.8 |
| C | 12 | 249 | 5394 | 84.53 | 252 | 253 | 60.8 |
| C | 13 | 61 | 1694 | 23.69 | 252 | 253 | 60.8 |
| D | 2 | 165 | 486439 | 7079.98 | 264 | 255 | 68.7 |
| D | 7 | 38 | 35113 | 507.61 | 264 | 255 | 68.7 |
| D | 13 | 23 | 10152 | 144.12 | 264 | 255 | 68.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

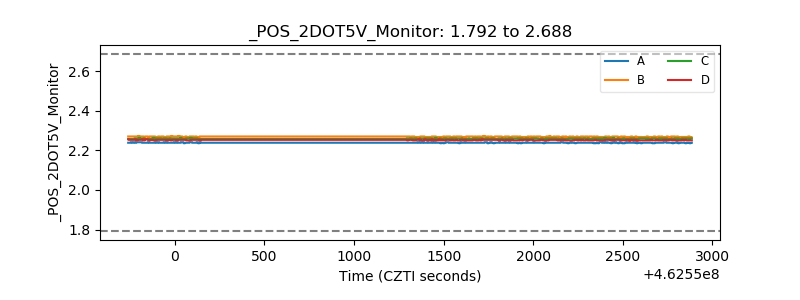

| +2.5 Volts monitor |  |

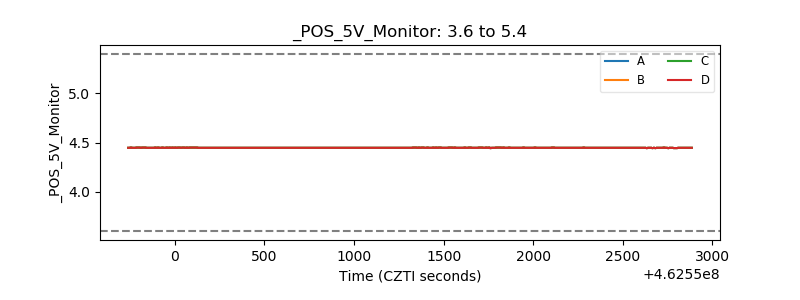

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
