| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48245cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48245cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,256,640 | 104,374,080 |
| Size | 630.6 MB | 99.5 MB |
| Events in quadrant A | 7,496,226 | 727,942 |
| Events in quadrant B | 3,763,088 | 771,203 |
| Events in quadrant C | 3,106,378 | 742,828 |
| Events in quadrant D | 9,595,983 | 454,334 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26949 | 2 |
| B | 0 | 15498 | 2 |
| C | 0 | 13865 | 2 |
| D | 0 | 33108 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 464 | 6.968013% |
| B | 6659 | 182 | 2.733143% |
| C | 6659 | 85 | 1.276468% |
| D | 6659 | 2538 | 38.113831% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7730 | 6659 | 70 | 70 | 0.91% | 1.05% |  |
| B | 7730 | 6659 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7730 | 6659 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7730 | 6659 | 2358 | 2358 | 30.50% | 35.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4323104 | 26158.54 | 785 | 768 | 165.2 |
| A | 0 | 31 | 73449 | 439.86 | 785 | 768 | 165.2 |
| A | 13 | 248 | 32148 | 189.91 | 785 | 768 | 165.2 |
| B | 4 | 21 | 248897 | 1585.77 | 794 | 770 | 156.5 |
| B | 0 | 200 | 248314 | 1582.04 | 794 | 770 | 156.5 |
| B | 12 | 32 | 52100 | 328.05 | 794 | 770 | 156.5 |
| C | 14 | 254 | 23817 | 124.34 | 782 | 785 | 185.2 |
| C | 12 | 2 | 16647 | 85.63 | 782 | 785 | 185.2 |
| C | 11 | 16 | 11706 | 58.96 | 782 | 785 | 185.2 |
| D | 2 | 165 | 6528750 | 37873.59 | 666 | 643 | 172.4 |
| D | 12 | 233 | 328523 | 1902.23 | 666 | 643 | 172.4 |
| D | 2 | 249 | 57006 | 327.0 | 666 | 643 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

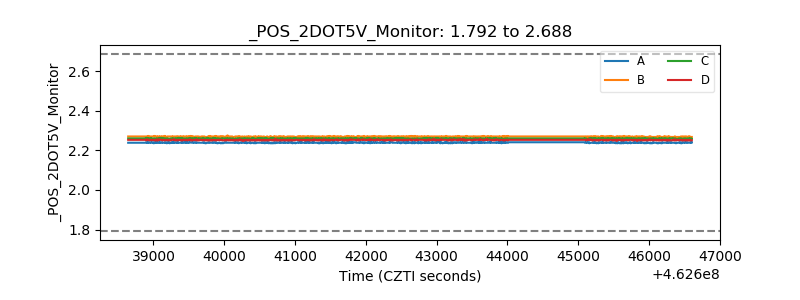

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
