| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48268cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48268cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,281,847,680 | 213,367,680 |
| Size | 1.2 GB | 203.5 MB |
| Events in quadrant A | 14,362,957 | 1,444,321 |
| Events in quadrant B | 7,448,874 | 1,552,570 |
| Events in quadrant C | 6,730,892 | 1,489,459 |
| Events in quadrant D | 17,801,111 | 984,647 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60729 | 7768 |
| B | 0 | 36275 | 4506 |
| C | 0 | 34295 | 4103 |
| D | 0 | 68642 | 6009 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 332 | 41 |
| B | 0 | 333 | 34 |
| C | 0 | 337 | 43 |
| D | 0 | 335 | 39 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14215 | 459 | 3.228983% |
| B | 14362 | 266 | 1.852110% |
| C | 14353 | 135 | 0.940570% |
| D | 14311 | 4246 | 29.669485% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26881 | 14374 | 10 | 10 | 0.04% | 0.07% |  |
| B | 26885 | 14514 | 73 | 73 | 0.27% | 0.50% |  |
| C | 26885 | 14539 | 49 | 49 | 0.18% | 0.34% |  |
| D | 26883 | 14500 | 4070 | 4070 | 15.14% | 28.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8156715 | 24273.58 | 1602 | 1566 | 336.0 |
| A | 13 | 254 | 29112 | 81.99 | 1602 | 1566 | 336.0 |
| A | 3 | 137 | 18947 | 51.73 | 1602 | 1566 | 336.0 |
| B | 4 | 21 | 648797 | 2003.7 | 1620 | 1566 | 323.0 |
| B | 5 | 255 | 139699 | 427.63 | 1620 | 1566 | 323.0 |
| B | 5 | 207 | 94706 | 288.34 | 1620 | 1566 | 323.0 |
| C | 12 | 2 | 240744 | 629.31 | 1602 | 1610 | 380.0 |
| C | 14 | 254 | 205519 | 536.61 | 1602 | 1610 | 380.0 |
| C | 3 | 233 | 25632 | 63.22 | 1602 | 1610 | 380.0 |
| D | 2 | 165 | 8658992 | 24742.12 | 1394 | 1350 | 349.9 |
| D | 12 | 3 | 2278709 | 6508.32 | 1394 | 1350 | 349.9 |
| D | 2 | 249 | 749251 | 2137.38 | 1394 | 1350 | 349.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

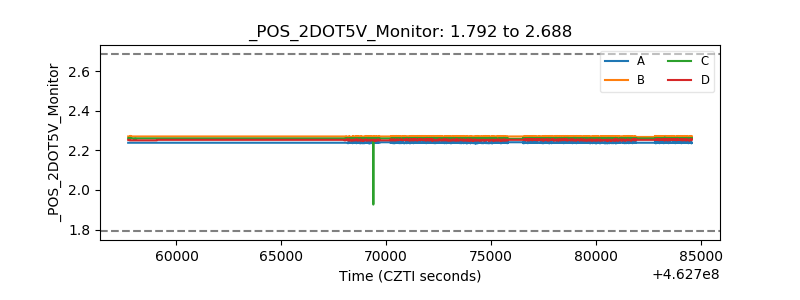

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
