| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48271cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48271cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,718,210,240 | 518,400,000 |
| Size | 2.5 GB | 494.4 MB |
| Events in quadrant A | 33,435,388 | 3,505,698 |
| Events in quadrant B | 16,931,873 | 3,659,853 |
| Events in quadrant C | 15,580,956 | 3,511,008 |
| Events in quadrant D | 32,101,796 | 2,728,779 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 123555 | 7 |
| B | 0 | 72994 | 7 |
| C | 0 | 70211 | 7 |
| D | 0 | 118298 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 680 | 0 |
| B | 0 | 680 | 0 |
| C | 0 | 680 | 0 |
| D | 0 | 680 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 33318 | 1005 | 3.016388% |
| B | 33319 | 540 | 1.620697% |
| C | 33319 | 302 | 0.906390% |
| D | 33319 | 5867 | 17.608572% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 37803 | 33325 | 79 | 79 | 0.21% | 0.24% |  |
| B | 37804 | 33323 | 127 | 127 | 0.34% | 0.38% |  |
| C | 37804 | 33324 | 79 | 79 | 0.21% | 0.24% |  |
| D | 37804 | 33323 | 5437 | 5437 | 14.38% | 16.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 18920422 | 24277.62 | 3744 | 3658 | 779.2 |
| A | 13 | 254 | 68355 | 83.03 | 3744 | 3658 | 779.2 |
| A | 3 | 137 | 43941 | 51.7 | 3744 | 3658 | 779.2 |
| B | 4 | 21 | 1292466 | 1758.19 | 3740 | 3616 | 733.1 |
| B | 5 | 255 | 343524 | 463.69 | 3740 | 3616 | 733.1 |
| B | 5 | 207 | 142089 | 188.9 | 3740 | 3616 | 733.1 |
| C | 14 | 254 | 639719 | 732.82 | 3706 | 3729 | 867.9 |
| C | 12 | 2 | 403395 | 460.52 | 3706 | 3729 | 867.9 |
| C | 3 | 233 | 49795 | 53.08 | 3706 | 3729 | 867.9 |
| D | 2 | 165 | 9344625 | 10853.09 | 3433 | 3326 | 860.7 |
| D | 12 | 3 | 6088359 | 7069.83 | 3433 | 3326 | 860.7 |
| D | 2 | 249 | 1604786 | 1860.64 | 3433 | 3326 | 860.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

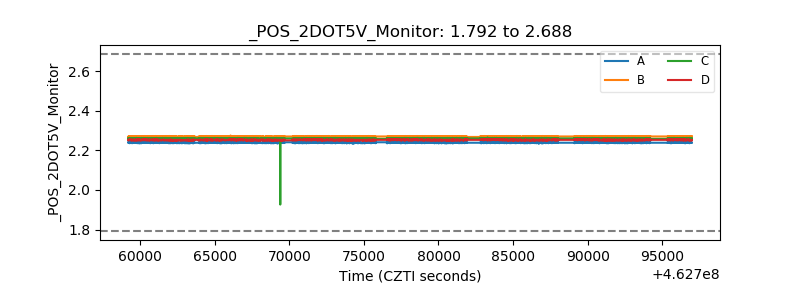

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
