| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48272cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48272cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,496,960 | 114,445,440 |
| Size | 457.3 MB | 109.1 MB |
| Events in quadrant A | 7,038,647 | 763,417 |
| Events in quadrant B | 3,302,620 | 798,371 |
| Events in quadrant C | 3,214,923 | 757,205 |
| Events in quadrant D | 3,682,670 | 687,603 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26282 | 1 |
| B | 0 | 13994 | 1 |
| C | 0 | 13924 | 1 |
| D | 0 | 15208 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 223 | 3.388028% |
| B | 6582 | 90 | 1.367366% |
| C | 6582 | 64 | 0.972349% |
| D | 6582 | 146 | 2.218171% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7763 | 6583 | 44 | 44 | 0.57% | 0.67% |  |
| B | 7763 | 6583 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7763 | 6583 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7763 | 6583 | 86 | 86 | 1.11% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4004563 | 24823.58 | 784 | 768 | 161.3 |
| A | 13 | 254 | 13423 | 78.46 | 784 | 768 | 161.3 |
| A | 3 | 137 | 8787 | 49.72 | 784 | 768 | 161.3 |
| B | 4 | 21 | 76273 | 493.26 | 780 | 755 | 153.1 |
| B | 0 | 186 | 49668 | 319.49 | 780 | 755 | 153.1 |
| B | 5 | 255 | 47356 | 304.39 | 780 | 755 | 153.1 |
| C | 14 | 254 | 142373 | 786.51 | 767 | 771 | 180.0 |
| C | 12 | 2 | 78627 | 432.44 | 767 | 771 | 180.0 |
| C | 13 | 61 | 5156 | 24.36 | 767 | 771 | 180.0 |
| D | 7 | 204 | 157453 | 791.7 | 777 | 753 | 197.9 |
| D | 2 | 249 | 112238 | 563.26 | 777 | 753 | 197.9 |
| D | 12 | 3 | 106816 | 535.87 | 777 | 753 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

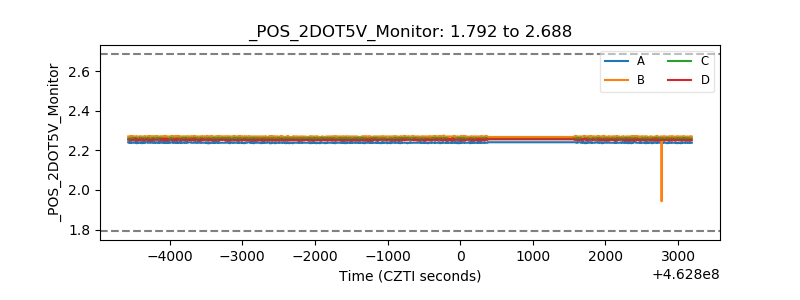

| +2.5 Volts monitor |  |

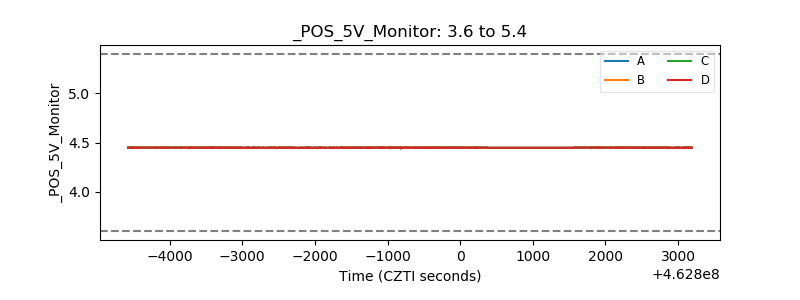

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
