| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48283cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48283cztM0_level2_quad_clean.evt |
| Size (bytes) | 952,326,720 | 204,719,040 |
| Size | 908.2 MB | 195.2 MB |
| Events in quadrant A | 13,179,497 | 1,337,956 |
| Events in quadrant B | 6,665,271 | 1,419,323 |
| Events in quadrant C | 5,726,620 | 1,370,331 |
| Events in quadrant D | 8,673,924 | 1,170,562 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53635 | 4816 |
| B | 0 | 31170 | 2623 |
| C | 0 | 28939 | 2274 |
| D | 0 | 41111 | 6108 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 288 | 16 |
| B | 0 | 287 | 18 |
| C | 0 | 289 | 23 |
| D | 0 | 285 | 20 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 3 |
| B | 0 | 22 | 3 |
| C | 0 | 20 | 2 |
| D | 0 | 22 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12950 | 369 | 2.849421% |
| B | 13087 | 164 | 1.253152% |
| C | 13115 | 47 | 0.358368% |
| D | 12904 | 753 | 5.835400% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23636 | 13245 | 16 | 16 | 0.07% | 0.12% |  |
| B | 23636 | 13331 | 30 | 30 | 0.13% | 0.23% |  |
| C | 23636 | 13351 | 2 | 2 | 0.01% | 0.01% |  |
| D | 23636 | 13170 | 500 | 500 | 2.12% | 3.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7487893 | 24779.73 | 1448 | 1418 | 302.1 |
| A | 7 | 3 | 75330 | 244.64 | 1448 | 1418 | 302.1 |
| A | 13 | 254 | 25199 | 78.71 | 1448 | 1418 | 302.1 |
| B | 4 | 21 | 444077 | 1529.92 | 1460 | 1415 | 289.3 |
| B | 5 | 255 | 200053 | 686.53 | 1460 | 1415 | 289.3 |
| B | 0 | 200 | 85337 | 290.05 | 1460 | 1415 | 289.3 |
| C | 14 | 254 | 48339 | 137.04 | 1446 | 1454 | 342.1 |
| C | 12 | 2 | 16688 | 44.53 | 1446 | 1454 | 342.1 |
| C | 1 | 16 | 11849 | 30.38 | 1446 | 1454 | 342.1 |
| D | 2 | 249 | 1478552 | 4206.48 | 1399 | 1355 | 351.2 |
| D | 2 | 165 | 1195500 | 3400.46 | 1399 | 1355 | 351.2 |
| D | 7 | 67 | 132262 | 372.77 | 1399 | 1355 | 351.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

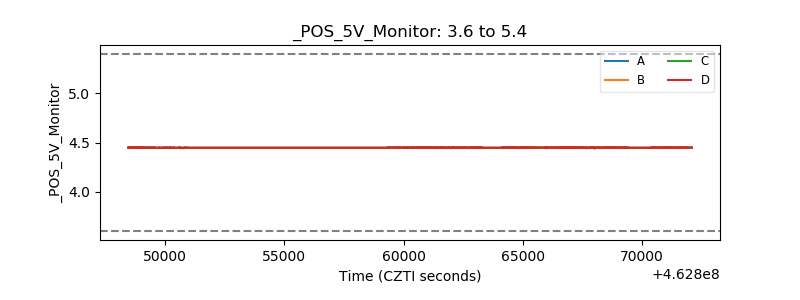

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
