| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48290cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48290cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,391,360 | 113,328,000 |
| Size | 494.4 MB | 108.1 MB |
| Events in quadrant A | 7,566,278 | 737,847 |
| Events in quadrant B | 3,670,950 | 777,047 |
| Events in quadrant C | 3,424,137 | 745,297 |
| Events in quadrant D | 3,978,883 | 678,781 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27332 | 1 |
| B | 0 | 15624 | 1 |
| C | 0 | 15236 | 1 |
| D | 0 | 16843 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7076 | 426 | 6.020350% |
| B | 7076 | 191 | 2.699265% |
| C | 7076 | 121 | 1.710006% |
| D | 7076 | 238 | 3.363482% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 7077 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7666 | 7077 | 11 | 11 | 0.14% | 0.16% |  |
| C | 7666 | 7077 | 27 | 27 | 0.35% | 0.38% |  |
| D | 7666 | 7077 | 100 | 100 | 1.30% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4354570 | 25584.85 | 818 | 800 | 170.2 |
| A | 13 | 248 | 27192 | 155.09 | 818 | 800 | 170.2 |
| A | 13 | 254 | 14850 | 82.56 | 818 | 800 | 170.2 |
| B | 4 | 21 | 181329 | 1089.59 | 823 | 797 | 165.7 |
| B | 0 | 200 | 153802 | 923.45 | 823 | 797 | 165.7 |
| B | 0 | 183 | 26995 | 158.12 | 823 | 797 | 165.7 |
| C | 14 | 254 | 153214 | 789.9 | 811 | 813 | 192.9 |
| C | 1 | 3 | 39250 | 199.22 | 811 | 813 | 192.9 |
| C | 2 | 207 | 35188 | 178.17 | 811 | 813 | 192.9 |
| D | 2 | 165 | 322254 | 1589.4 | 808 | 783 | 202.3 |
| D | 2 | 249 | 182869 | 900.26 | 808 | 783 | 202.3 |
| D | 7 | 67 | 105381 | 517.15 | 808 | 783 | 202.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

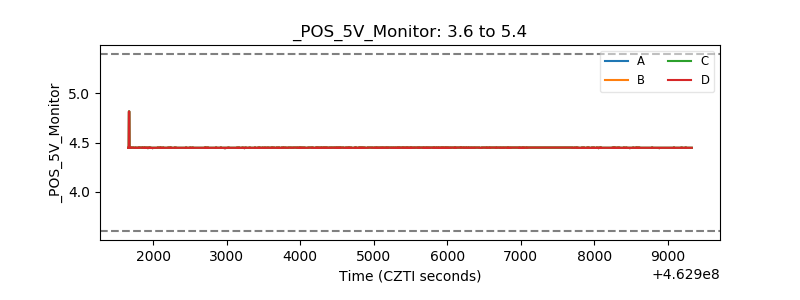

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
