| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48300cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48300cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,301,796,800 | 500,181,120 |
| Size | 2.1 GB | 477.0 MB |
| Events in quadrant A | 31,821,464 | 3,314,145 |
| Events in quadrant B | 15,767,317 | 3,464,413 |
| Events in quadrant C | 14,155,840 | 3,319,520 |
| Events in quadrant D | 21,028,315 | 2,879,631 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 117231 | 54 |
| B | 0 | 68291 | 8 |
| C | 0 | 65084 | 10 |
| D | 0 | 85085 | 12 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 640 | 0 |
| B | 0 | 639 | 1 |
| C | 0 | 640 | 0 |
| D | 0 | 640 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 31512 | 880 | 2.792587% |
| B | 31529 | 406 | 1.287703% |
| C | 31527 | 221 | 0.700986% |
| D | 31527 | 1927 | 6.112221% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38411 | 31530 | 93 | 93 | 0.24% | 0.29% |  |
| B | 38412 | 31536 | 70 | 70 | 0.18% | 0.22% |  |
| C | 38412 | 31536 | 42 | 42 | 0.11% | 0.13% |  |
| D | 38412 | 31536 | 1452 | 1452 | 3.78% | 4.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 17896440 | 24618.27 | 3515 | 3441 | 726.8 |
| A | 13 | 248 | 257639 | 349.74 | 3515 | 3441 | 726.8 |
| A | 13 | 254 | 59136 | 76.63 | 3515 | 3441 | 726.8 |
| B | 4 | 21 | 1272274 | 1840.34 | 3518 | 3404 | 689.5 |
| B | 5 | 255 | 163169 | 231.72 | 3518 | 3404 | 689.5 |
| B | 5 | 79 | 96868 | 135.56 | 3518 | 3404 | 689.5 |
| C | 14 | 254 | 315089 | 381.06 | 3483 | 3498 | 817.7 |
| C | 12 | 2 | 162160 | 194.03 | 3483 | 3498 | 817.7 |
| C | 1 | 16 | 27827 | 29.75 | 3483 | 3498 | 817.7 |
| D | 2 | 165 | 4404528 | 5150.27 | 3389 | 3289 | 854.6 |
| D | 2 | 249 | 1418494 | 1656.05 | 3389 | 3289 | 854.6 |
| D | 12 | 221 | 628934 | 732.12 | 3389 | 3289 | 854.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

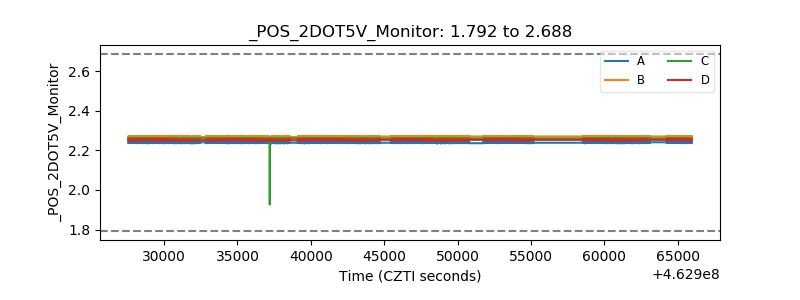

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
