| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48306cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48306cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,874,880 | 123,382,080 |
| Size | 533.9 MB | 117.7 MB |
| Events in quadrant A | 8,158,567 | 814,069 |
| Events in quadrant B | 4,046,299 | 848,293 |
| Events in quadrant C | 3,564,493 | 809,007 |
| Events in quadrant D | 4,359,116 | 729,174 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29551 | 0 |
| B | 0 | 17285 | 0 |
| C | 0 | 16124 | 0 |
| D | 0 | 18417 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7693 | 297 | 3.860653% |
| B | 7694 | 76 | 0.987783% |
| C | 7694 | 12 | 0.155966% |
| D | 7693 | 180 | 2.339789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7693 | 7693 | 59 | 59 | 0.77% | 0.77% |  |
| B | 7694 | 7694 | 28 | 28 | 0.36% | 0.36% |  |
| C | 7694 | 7694 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7693 | 7693 | 110 | 110 | 1.43% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4567192 | 25255.36 | 868 | 847 | 180.8 |
| A | 13 | 248 | 194325 | 1070.08 | 868 | 847 | 180.8 |
| A | 13 | 254 | 15849 | 82.97 | 868 | 847 | 180.8 |
| B | 4 | 21 | 314350 | 1824.02 | 871 | 842 | 171.9 |
| B | 5 | 255 | 119552 | 690.67 | 871 | 842 | 171.9 |
| B | 5 | 171 | 45074 | 257.35 | 871 | 842 | 171.9 |
| C | 0 | 207 | 129105 | 631.13 | 857 | 861 | 203.2 |
| C | 12 | 2 | 34651 | 166.29 | 857 | 861 | 203.2 |
| C | 14 | 254 | 30597 | 146.34 | 857 | 861 | 203.2 |
| D | 12 | 128 | 341038 | 1566.24 | 853 | 826 | 217.2 |
| D | 12 | 2 | 317339 | 1457.14 | 853 | 826 | 217.2 |
| D | 2 | 249 | 127821 | 584.65 | 853 | 826 | 217.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

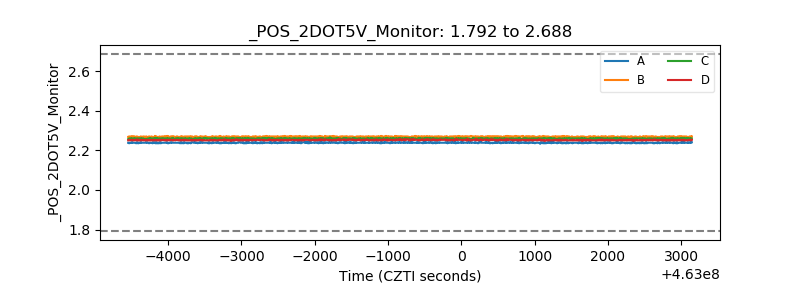

| +2.5 Volts monitor |  |

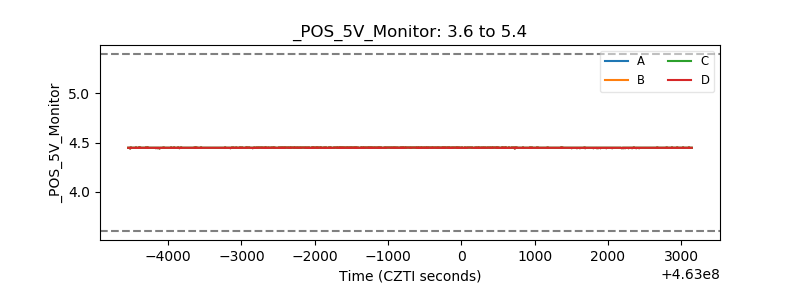

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
