| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48307cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48307cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,059,200 | 131,224,320 |
| Size | 594.2 MB | 125.1 MB |
| Events in quadrant A | 8,729,176 | 867,004 |
| Events in quadrant B | 4,074,634 | 909,920 |
| Events in quadrant C | 3,763,609 | 862,826 |
| Events in quadrant D | 5,857,512 | 759,926 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31570 | 0 |
| B | 0 | 17946 | 0 |
| C | 0 | 17189 | 0 |
| D | 0 | 23168 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8247 | 389 | 4.716867% |
| B | 8248 | 50 | 0.606208% |
| C | 8248 | 21 | 0.254607% |
| D | 8247 | 442 | 5.359525% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8247 | 8247 | 59 | 59 | 0.72% | 0.72% |  |
| B | 8248 | 8248 | 10 | 10 | 0.12% | 0.12% |  |
| C | 8248 | 8248 | 6 | 6 | 0.07% | 0.07% |  |
| D | 8247 | 8247 | 296 | 296 | 3.59% | 3.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4813299 | 24360.9 | 934 | 912 | 197.5 |
| A | 13 | 248 | 134628 | 676.89 | 934 | 912 | 197.5 |
| A | 0 | 247 | 129880 | 652.85 | 934 | 912 | 197.5 |
| B | 4 | 21 | 118095 | 628.1 | 943 | 914 | 186.6 |
| B | 5 | 255 | 101823 | 540.88 | 943 | 914 | 186.6 |
| B | 0 | 197 | 32897 | 171.43 | 943 | 914 | 186.6 |
| C | 0 | 207 | 65728 | 294.29 | 923 | 929 | 220.2 |
| C | 12 | 2 | 41500 | 184.26 | 923 | 929 | 220.2 |
| C | 14 | 254 | 36220 | 160.28 | 923 | 929 | 220.2 |
| D | 12 | 128 | 1094103 | 4687.36 | 906 | 876 | 233.2 |
| D | 12 | 2 | 339942 | 1453.79 | 906 | 876 | 233.2 |
| D | 2 | 249 | 175854 | 750.24 | 906 | 876 | 233.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

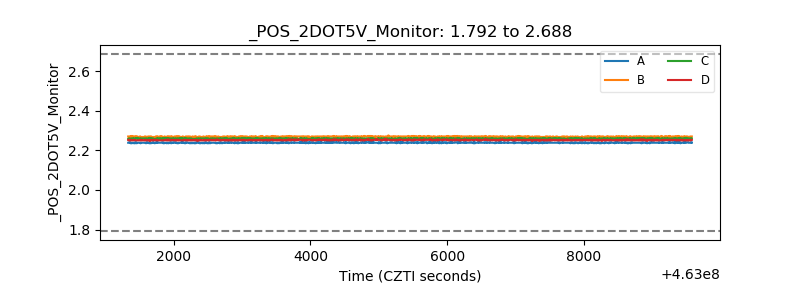

| +2.5 Volts monitor |  |

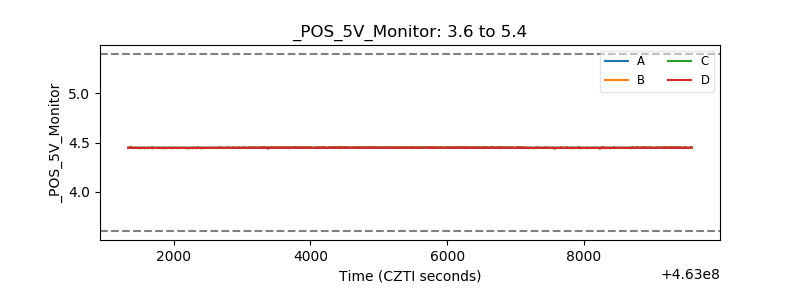

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
