| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48312cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48312cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,074,142,080 | 239,169,600 |
| Size | 1.0 GB | 228.1 MB |
| Events in quadrant A | 15,737,464 | 1,554,241 |
| Events in quadrant B | 7,240,417 | 1,645,427 |
| Events in quadrant C | 6,916,931 | 1,584,038 |
| Events in quadrant D | 8,674,698 | 1,393,736 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 81503 | 23843 |
| B | 0 | 45266 | 12983 |
| C | 0 | 44468 | 12600 |
| D | 0 | 53013 | 16172 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 440 | 119 |
| B | 0 | 446 | 126 |
| C | 0 | 438 | 117 |
| D | 0 | 426 | 111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 2 |
| B | 0 | 29 | 2 |
| C | 0 | 29 | 3 |
| D | 0 | 31 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15213 | 577 | 3.792809% |
| B | 15495 | 113 | 0.729268% |
| C | 15476 | 78 | 0.504006% |
| D | 15428 | 499 | 3.234379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21339 | 15413 | 146 | 146 | 0.68% | 0.95% |  |
| B | 25902 | 15809 | 6 | 6 | 0.02% | 0.04% |  |
| C | 25912 | 15805 | 20 | 20 | 0.08% | 0.13% |  |
| D | 25886 | 15707 | 356 | 356 | 1.38% | 2.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8789070 | 25155.3 | 1681 | 1645 | 349.3 |
| A | 13 | 248 | 371759 | 1059.5 | 1681 | 1645 | 349.3 |
| A | 0 | 31 | 43008 | 118.41 | 1681 | 1645 | 349.3 |
| B | 5 | 255 | 116424 | 334.77 | 1729 | 1674 | 342.8 |
| B | 4 | 21 | 91557 | 262.22 | 1729 | 1674 | 342.8 |
| B | 12 | 111 | 44613 | 125.27 | 1729 | 1674 | 342.8 |
| C | 12 | 2 | 152138 | 374.52 | 1702 | 1708 | 401.7 |
| C | 14 | 254 | 62103 | 150.36 | 1702 | 1708 | 401.7 |
| C | 1 | 16 | 30080 | 70.64 | 1702 | 1708 | 401.7 |
| D | 2 | 249 | 730835 | 1727.69 | 1686 | 1634 | 422.1 |
| D | 12 | 2 | 639200 | 1510.58 | 1686 | 1634 | 422.1 |
| D | 12 | 128 | 452316 | 1067.79 | 1686 | 1634 | 422.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

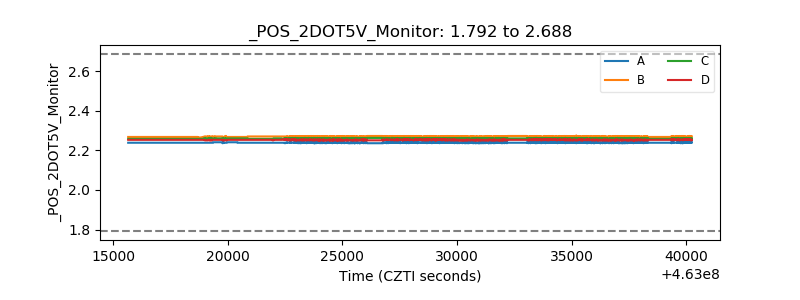

| +2.5 Volts monitor |  |

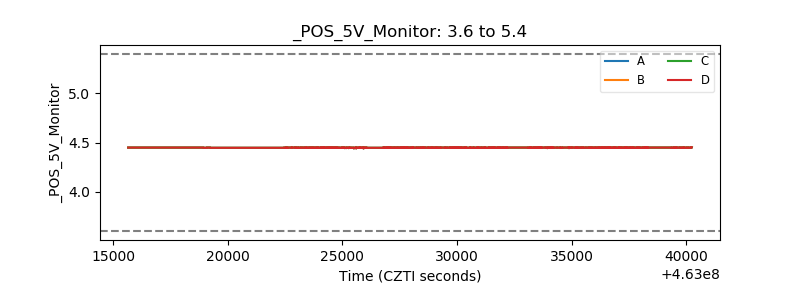

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
