| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48315cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48315cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,226,560 | 103,196,160 |
| Size | 409.3 MB | 98.4 MB |
| Events in quadrant A | 6,268,533 | 683,938 |
| Events in quadrant B | 3,110,217 | 712,491 |
| Events in quadrant C | 2,788,611 | 684,363 |
| Events in quadrant D | 3,250,397 | 620,673 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23780 | 1 |
| B | 0 | 13100 | 1 |
| C | 0 | 12397 | 1 |
| D | 0 | 13808 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6063 | 193 | 3.183243% |
| B | 6063 | 108 | 1.781296% |
| C | 6063 | 57 | 0.940129% |
| D | 6064 | 141 | 2.325198% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7188 | 6064 | 12 | 12 | 0.17% | 0.20% |  |
| B | 7188 | 6064 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7188 | 6064 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7189 | 6065 | 70 | 70 | 0.97% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3488225 | 23560.33 | 710 | 695 | 148.0 |
| A | 0 | 31 | 29740 | 196.22 | 710 | 695 | 148.0 |
| A | 13 | 254 | 11933 | 75.92 | 710 | 695 | 148.0 |
| B | 5 | 255 | 146081 | 1028.9 | 709 | 688 | 141.3 |
| B | 4 | 21 | 57748 | 403.8 | 709 | 688 | 141.3 |
| B | 0 | 200 | 40293 | 280.27 | 709 | 688 | 141.3 |
| C | 1 | 16 | 42035 | 250.49 | 701 | 706 | 165.0 |
| C | 14 | 254 | 8478 | 47.1 | 701 | 706 | 165.0 |
| C | 12 | 2 | 4546 | 23.27 | 701 | 706 | 165.0 |
| D | 12 | 233 | 203007 | 1140.57 | 705 | 684 | 177.4 |
| D | 2 | 249 | 65328 | 364.42 | 705 | 684 | 177.4 |
| D | 13 | 70 | 55460 | 308.79 | 705 | 684 | 177.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

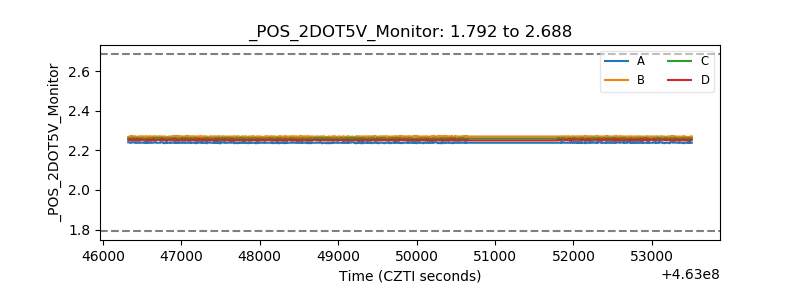

| +2.5 Volts monitor |  |

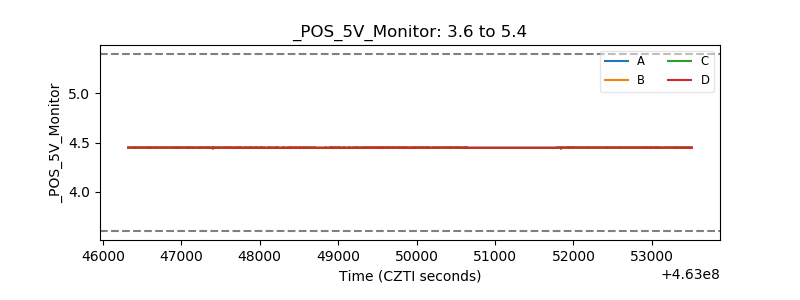

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
