| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48316cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48316cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,276,800 | 110,779,200 |
| Size | 441.8 MB | 105.6 MB |
| Events in quadrant A | 6,971,651 | 737,117 |
| Events in quadrant B | 3,327,884 | 771,511 |
| Events in quadrant C | 3,035,247 | 731,893 |
| Events in quadrant D | 3,316,692 | 666,393 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26000 | 4 |
| B | 0 | 13917 | 1 |
| C | 0 | 13375 | 1 |
| D | 0 | 14136 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6411 | 290 | 4.523475% |
| B | 6411 | 120 | 1.871783% |
| C | 6412 | 90 | 1.403618% |
| D | 6412 | 173 | 2.698066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6412 | 69 | 69 | 0.91% | 1.08% |  |
| B | 7576 | 6412 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7577 | 6413 | 27 | 27 | 0.36% | 0.42% |  |
| D | 7577 | 6413 | 78 | 78 | 1.03% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3805711 | 23950.69 | 761 | 746 | 158.9 |
| A | 13 | 248 | 185267 | 1161.48 | 761 | 746 | 158.9 |
| A | 13 | 254 | 12409 | 73.41 | 761 | 746 | 158.9 |
| B | 4 | 21 | 118715 | 791.17 | 762 | 740 | 149.1 |
| B | 5 | 255 | 62500 | 414.18 | 762 | 740 | 149.1 |
| B | 0 | 200 | 51452 | 340.09 | 762 | 740 | 149.1 |
| C | 12 | 2 | 125281 | 712.31 | 745 | 748 | 174.8 |
| C | 13 | 61 | 4971 | 24.15 | 745 | 748 | 174.8 |
| C | 3 | 233 | 3121 | 13.57 | 745 | 748 | 174.8 |
| D | 7 | 96 | 214399 | 1131.03 | 755 | 733 | 188.9 |
| D | 12 | 233 | 78266 | 410.42 | 755 | 733 | 188.9 |
| D | 10 | 181 | 42737 | 222.35 | 755 | 733 | 188.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

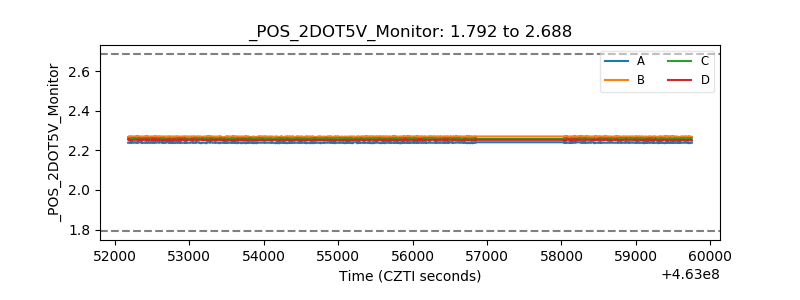

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
