| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48320cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48320cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,799,360 | 124,761,600 |
| Size | 569.2 MB | 119.0 MB |
| Events in quadrant A | 8,497,155 | 802,889 |
| Events in quadrant B | 4,403,094 | 848,685 |
| Events in quadrant C | 3,683,765 | 834,721 |
| Events in quadrant D | 4,898,626 | 744,717 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30777 | 1 |
| B | 0 | 18461 | 1 |
| C | 0 | 16730 | 1 |
| D | 0 | 20171 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7857 | 587 | 7.471045% |
| B | 7857 | 376 | 4.785542% |
| C | 7857 | 66 | 0.840015% |
| D | 7857 | 362 | 4.607356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7857 | 7857 | 33 | 33 | 0.42% | 0.42% |  |
| B | 7857 | 7857 | 75 | 75 | 0.95% | 0.95% |  |
| C | 7857 | 7857 | 24 | 24 | 0.31% | 0.31% |  |
| D | 7857 | 7857 | 204 | 204 | 2.60% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4771250 | 24764.89 | 911 | 892 | 192.6 |
| A | 13 | 248 | 108894 | 560.68 | 911 | 892 | 192.6 |
| A | 0 | 31 | 67494 | 345.76 | 911 | 892 | 192.6 |
| B | 4 | 21 | 281426 | 1530.36 | 915 | 886 | 183.3 |
| B | 0 | 186 | 251638 | 1367.87 | 915 | 886 | 183.3 |
| B | 0 | 200 | 182085 | 988.45 | 915 | 886 | 183.3 |
| C | 12 | 2 | 74309 | 340.29 | 908 | 911 | 215.7 |
| C | 12 | 249 | 36377 | 164.43 | 908 | 911 | 215.7 |
| C | 1 | 3 | 23715 | 105.73 | 908 | 911 | 215.7 |
| D | 12 | 233 | 494091 | 2161.83 | 898 | 869 | 228.1 |
| D | 13 | 29 | 230938 | 1008.41 | 898 | 869 | 228.1 |
| D | 1 | 232 | 218081 | 952.06 | 898 | 869 | 228.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

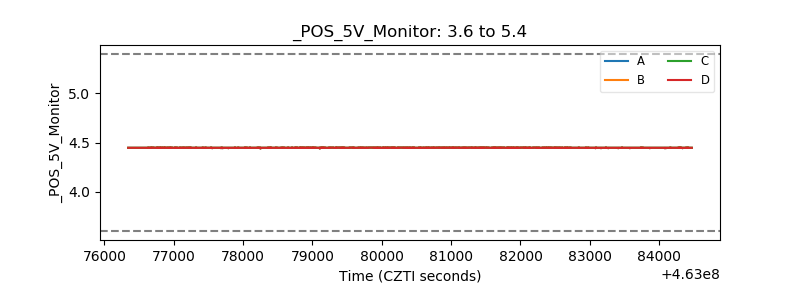

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
