| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48328cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48328cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,712,004,480 | 364,855,680 |
| Size | 1.6 GB | 348.0 MB |
| Events in quadrant A | 24,009,860 | 2,335,307 |
| Events in quadrant B | 11,864,598 | 2,531,475 |
| Events in quadrant C | 10,531,664 | 2,438,373 |
| Events in quadrant D | 15,163,959 | 2,132,609 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 103899 | 16587 |
| B | 0 | 60099 | 8849 |
| C | 0 | 56502 | 7849 |
| D | 0 | 73052 | 11266 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 553 | 66 |
| B | 0 | 557 | 67 |
| C | 0 | 557 | 66 |
| D | 0 | 550 | 62 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 1 |
| B | 0 | 35 | 1 |
| C | 0 | 36 | 1 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22883 | 942 | 4.116593% |
| B | 23457 | 355 | 1.513408% |
| C | 23603 | 112 | 0.474516% |
| D | 23341 | 1043 | 4.468532% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 33528 | 23943 | 244 | 244 | 0.73% | 1.02% |  |
| B | 33528 | 24471 | 100 | 100 | 0.30% | 0.41% |  |
| C | 33526 | 24574 | 16 | 16 | 0.05% | 0.07% |  |
| D | 33523 | 24347 | 734 | 734 | 2.19% | 3.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 13150682 | 24921.0 | 2533 | 2480 | 527.6 |
| A | 13 | 248 | 895528 | 1692.68 | 2533 | 2480 | 527.6 |
| A | 0 | 31 | 56448 | 102.29 | 2533 | 2480 | 527.6 |
| B | 5 | 255 | 630665 | 1225.24 | 2618 | 2534 | 512.7 |
| B | 4 | 21 | 481829 | 934.92 | 2618 | 2534 | 512.7 |
| B | 0 | 186 | 107708 | 205.15 | 2618 | 2534 | 512.7 |
| C | 12 | 2 | 182976 | 291.56 | 2613 | 2628 | 618.6 |
| C | 12 | 249 | 71614 | 111.52 | 2613 | 2628 | 618.6 |
| C | 12 | 250 | 69088 | 107.44 | 2613 | 2628 | 618.6 |
| D | 2 | 165 | 1720174 | 2664.5 | 2550 | 2468 | 644.7 |
| D | 12 | 2 | 1595499 | 2471.11 | 2550 | 2468 | 644.7 |
| D | 2 | 249 | 896550 | 1386.9 | 2550 | 2468 | 644.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

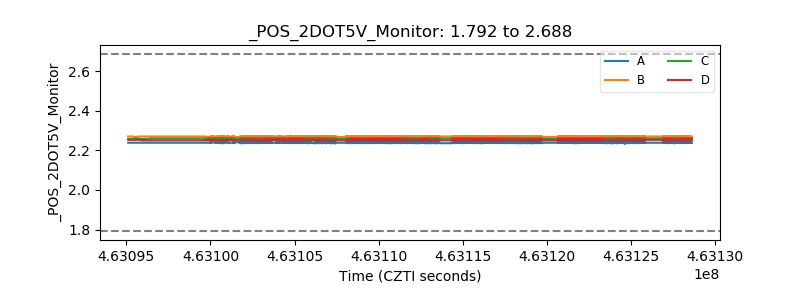

| +2.5 Volts monitor |  |

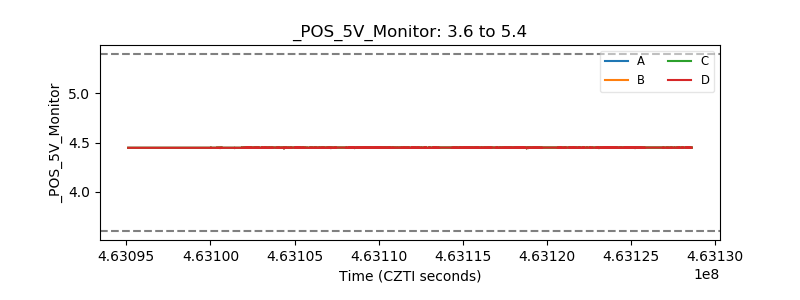

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
