| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006422_48336cztM0_level2.fits | modeM0/AS1A13_029T01_9000006422_48336cztM0_level2_quad_clean.evt |
| Size (bytes) | 656,922,240 | 137,076,480 |
| Size | 626.5 MB | 130.7 MB |
| Events in quadrant A | 9,068,302 | 909,562 |
| Events in quadrant B | 5,489,107 | 930,127 |
| Events in quadrant C | 3,989,168 | 905,255 |
| Events in quadrant D | 5,102,140 | 805,475 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33028 | 0 |
| B | 0 | 22287 | 0 |
| C | 0 | 18226 | 0 |
| D | 0 | 21331 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8634 | 321 | 3.717860% |
| B | 8634 | 311 | 3.602038% |
| C | 8634 | 37 | 0.428538% |
| D | 8635 | 268 | 3.103648% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8634 | 8634 | 16 | 16 | 0.19% | 0.19% |  |
| B | 8634 | 8634 | 117 | 117 | 1.36% | 1.36% |  |
| C | 8634 | 8634 | 14 | 14 | 0.16% | 0.16% |  |
| D | 8635 | 8635 | 218 | 218 | 2.52% | 2.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5168866 | 24714.32 | 986 | 965 | 209.1 |
| A | 13 | 248 | 58719 | 276.2 | 986 | 965 | 209.1 |
| A | 0 | 31 | 21969 | 100.45 | 986 | 965 | 209.1 |
| B | 5 | 255 | 539893 | 2773.8 | 981 | 951 | 194.3 |
| B | 4 | 21 | 343964 | 1765.4 | 981 | 951 | 194.3 |
| B | 5 | 79 | 333482 | 1711.45 | 981 | 951 | 194.3 |
| C | 15 | 208 | 161528 | 697.72 | 968 | 971 | 230.1 |
| C | 12 | 2 | 19852 | 82.05 | 968 | 971 | 230.1 |
| C | 12 | 249 | 18091 | 74.4 | 968 | 971 | 230.1 |
| D | 13 | 29 | 601697 | 2440.49 | 959 | 925 | 246.2 |
| D | 2 | 249 | 256013 | 1036.23 | 959 | 925 | 246.2 |
| D | 12 | 233 | 216098 | 874.09 | 959 | 925 | 246.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

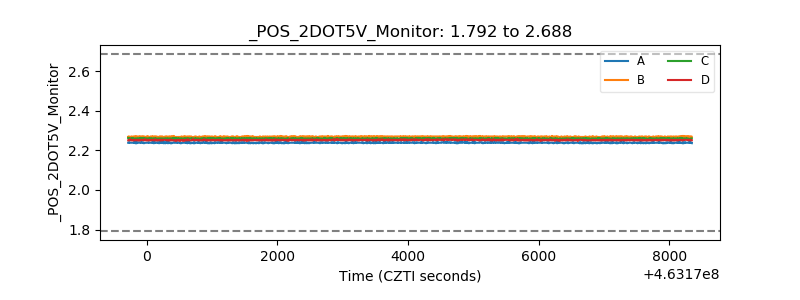

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
