| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006424_48341cztM0_level2.fits | modeM0/AS1A13_037T05_9000006424_48341cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,228,800 | 105,209,280 |
| Size | 436.0 MB | 100.3 MB |
| Events in quadrant A | 6,921,073 | 691,140 |
| Events in quadrant B | 3,168,370 | 726,706 |
| Events in quadrant C | 2,969,444 | 683,352 |
| Events in quadrant D | 3,353,120 | 622,965 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25713 | 1 |
| B | 0 | 14014 | 1 |
| C | 0 | 13699 | 1 |
| D | 0 | 14860 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6610 | 189 | 2.859304% |
| B | 6611 | 74 | 1.119347% |
| C | 6611 | 45 | 0.680684% |
| D | 6611 | 81 | 1.225231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6610 | 38 | 38 | 0.50% | 0.57% |  |
| B | 7601 | 6611 | 16 | 16 | 0.21% | 0.24% |  |
| C | 7601 | 6612 | 14 | 14 | 0.18% | 0.21% |  |
| D | 7601 | 6611 | 56 | 56 | 0.74% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4058789 | 26792.43 | 717 | 701 | 151.5 |
| A | 13 | 248 | 51865 | 337.8 | 717 | 701 | 151.5 |
| A | 0 | 31 | 19501 | 124.12 | 717 | 701 | 151.5 |
| B | 4 | 21 | 142771 | 992.41 | 723 | 701 | 143.2 |
| B | 0 | 200 | 74285 | 514.01 | 723 | 701 | 143.2 |
| B | 5 | 255 | 43392 | 298.21 | 723 | 701 | 143.2 |
| C | 15 | 208 | 101496 | 600.33 | 715 | 718 | 167.9 |
| C | 12 | 2 | 34207 | 199.49 | 715 | 718 | 167.9 |
| C | 12 | 249 | 27469 | 159.35 | 715 | 718 | 167.9 |
| D | 2 | 249 | 430905 | 2424.26 | 707 | 684 | 177.5 |
| D | 13 | 171 | 57634 | 320.91 | 707 | 684 | 177.5 |
| D | 13 | 29 | 55918 | 311.24 | 707 | 684 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

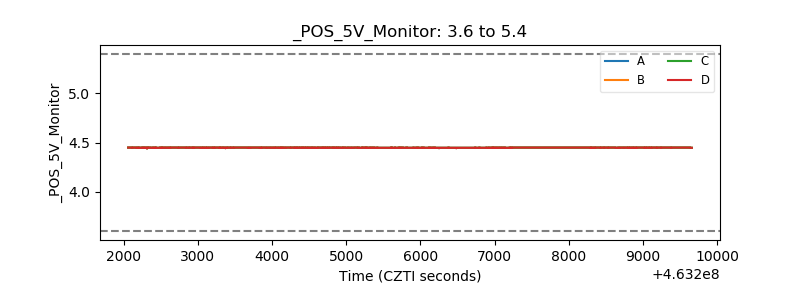

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
