| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48363cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48363cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,328,640 | 116,732,160 |
| Size | 493.4 MB | 111.3 MB |
| Events in quadrant A | 8,034,445 | 742,752 |
| Events in quadrant B | 3,613,612 | 788,345 |
| Events in quadrant C | 3,441,481 | 773,682 |
| Events in quadrant D | 3,482,210 | 711,021 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29146 | 2 |
| B | 0 | 16054 | 2 |
| C | 0 | 15777 | 3 |
| D | 0 | 15993 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7447 | 602 | 8.083792% |
| B | 7447 | 302 | 4.055324% |
| C | 7446 | 154 | 2.068225% |
| D | 7446 | 156 | 2.095085% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 7447 | 28 | 28 | 0.36% | 0.38% |  |
| B | 7787 | 7447 | 12 | 12 | 0.15% | 0.16% |  |
| C | 7786 | 7446 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7786 | 7447 | 8 | 8 | 0.10% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4561904 | 25520.34 | 851 | 833 | 178.7 |
| A | 13 | 248 | 169900 | 945.97 | 851 | 833 | 178.7 |
| A | 13 | 254 | 15066 | 79.64 | 851 | 833 | 178.7 |
| B | 0 | 198 | 73932 | 417.15 | 863 | 834 | 175.2 |
| B | 4 | 21 | 50535 | 283.63 | 863 | 834 | 175.2 |
| B | 0 | 186 | 26709 | 147.66 | 863 | 834 | 175.2 |
| C | 12 | 2 | 39495 | 190.62 | 854 | 860 | 202.7 |
| C | 1 | 16 | 30390 | 145.69 | 854 | 860 | 202.7 |
| C | 15 | 208 | 17092 | 80.09 | 854 | 860 | 202.7 |
| D | 2 | 249 | 102215 | 471.36 | 860 | 834 | 215.1 |
| D | 2 | 234 | 37638 | 171.12 | 860 | 834 | 215.1 |
| D | 2 | 233 | 35024 | 158.96 | 860 | 834 | 215.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

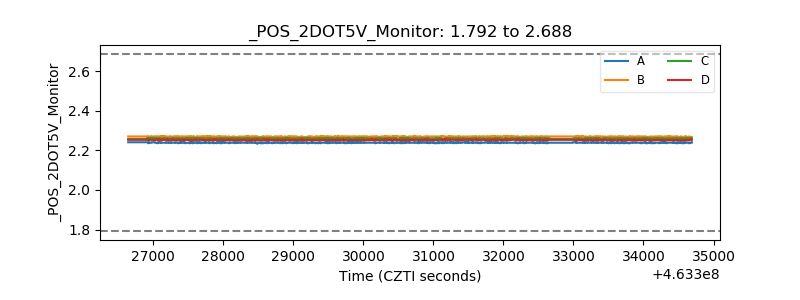

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
