| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48391cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48391cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,781,440 | 109,543,680 |
| Size | 475.7 MB | 104.5 MB |
| Events in quadrant A | 7,489,018 | 710,778 |
| Events in quadrant B | 4,069,275 | 736,542 |
| Events in quadrant C | 3,020,309 | 728,746 |
| Events in quadrant D | 3,351,874 | 662,638 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27661 | 3 |
| B | 0 | 16594 | 1 |
| C | 0 | 14095 | 1 |
| D | 0 | 14831 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6867 | 420 | 6.116208% |
| B | 6868 | 307 | 4.470006% |
| C | 6868 | 69 | 1.004659% |
| D | 6868 | 112 | 1.630751% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7727 | 6869 | 114 | 114 | 1.48% | 1.66% |  |
| B | 7728 | 6870 | 128 | 128 | 1.66% | 1.86% |  |
| C | 7728 | 6870 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7728 | 6870 | 15 | 15 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4162374 | 25871.28 | 765 | 748 | 160.9 |
| A | 13 | 248 | 359696 | 2231.45 | 765 | 748 | 160.9 |
| A | 13 | 254 | 13658 | 80.26 | 765 | 748 | 160.9 |
| B | 12 | 16 | 684003 | 4458.4 | 765 | 739 | 153.3 |
| B | 5 | 255 | 123694 | 802.3 | 765 | 739 | 153.3 |
| B | 4 | 21 | 105782 | 685.42 | 765 | 739 | 153.3 |
| C | 15 | 208 | 20204 | 107.45 | 762 | 767 | 180.9 |
| C | 3 | 233 | 17404 | 91.97 | 762 | 767 | 180.9 |
| C | 1 | 3 | 11839 | 61.21 | 762 | 767 | 180.9 |
| D | 2 | 249 | 177086 | 913.7 | 766 | 742 | 193.0 |
| D | 5 | 32 | 82416 | 423.18 | 766 | 742 | 193.0 |
| D | 2 | 165 | 61887 | 316.81 | 766 | 742 | 193.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

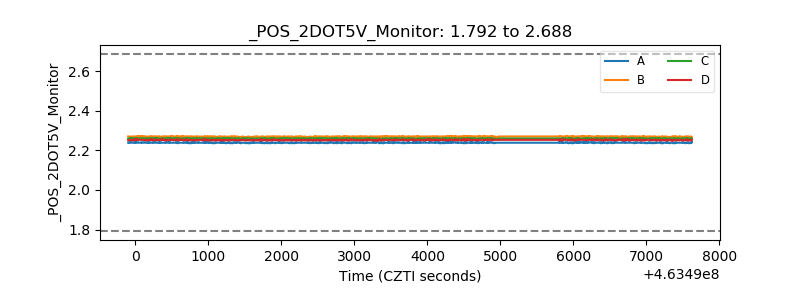

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
