| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48393cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48393cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,638,080 | 123,264,000 |
| Size | 551.8 MB | 117.6 MB |
| Events in quadrant A | 8,279,835 | 808,759 |
| Events in quadrant B | 5,195,442 | 814,141 |
| Events in quadrant C | 3,548,736 | 813,419 |
| Events in quadrant D | 3,785,412 | 748,622 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29964 | 2 |
| B | 0 | 20784 | 2 |
| C | 0 | 16548 | 2 |
| D | 0 | 17242 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7867 | 399 | 5.071819% |
| B | 7868 | 487 | 6.189629% |
| C | 7868 | 80 | 1.016777% |
| D | 7867 | 81 | 1.029617% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7887 | 7868 | 51 | 51 | 0.65% | 0.65% |  |
| B | 7888 | 7869 | 163 | 163 | 2.07% | 2.07% |  |
| C | 7888 | 7869 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7887 | 7868 | 21 | 21 | 0.27% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4548018 | 23979.27 | 893 | 869 | 189.6 |
| A | 13 | 248 | 270071 | 1419.63 | 893 | 869 | 189.6 |
| A | 13 | 254 | 17218 | 86.22 | 893 | 869 | 189.6 |
| B | 12 | 16 | 608897 | 3431.32 | 882 | 854 | 177.2 |
| B | 4 | 21 | 582070 | 3279.93 | 882 | 854 | 177.2 |
| B | 5 | 255 | 268784 | 1511.99 | 882 | 854 | 177.2 |
| C | 1 | 3 | 35067 | 162.08 | 885 | 890 | 210.9 |
| C | 15 | 208 | 28590 | 131.36 | 885 | 890 | 210.9 |
| C | 12 | 249 | 12516 | 55.13 | 885 | 890 | 210.9 |
| D | 2 | 249 | 304376 | 1354.5 | 891 | 860 | 224.1 |
| D | 2 | 234 | 42602 | 186.28 | 891 | 860 | 224.1 |
| D | 2 | 233 | 36639 | 159.67 | 891 | 860 | 224.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

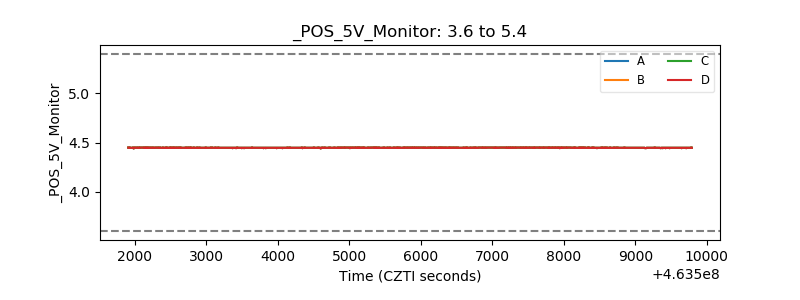

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
