| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48405cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48405cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,216,320 | 109,952,640 |
| Size | 536.2 MB | 104.9 MB |
| Events in quadrant A | 7,923,548 | 703,202 |
| Events in quadrant B | 4,353,369 | 756,488 |
| Events in quadrant C | 3,210,204 | 751,770 |
| Events in quadrant D | 4,783,701 | 632,479 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29254 | 2 |
| B | 0 | 17517 | 2 |
| C | 0 | 14490 | 2 |
| D | 0 | 19188 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6970 | 669 | 9.598278% |
| B | 6971 | 403 | 5.781093% |
| C | 6971 | 91 | 1.305408% |
| D | 6971 | 655 | 9.396069% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7915 | 6971 | 244 | 244 | 3.08% | 3.50% |  |
| B | 7916 | 6972 | 189 | 189 | 2.39% | 2.71% |  |
| C | 7916 | 6972 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7916 | 6972 | 482 | 482 | 6.09% | 6.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4182132 | 25943.24 | 771 | 754 | 161.2 |
| A | 13 | 248 | 763687 | 4733.6 | 771 | 754 | 161.2 |
| A | 13 | 254 | 12679 | 73.99 | 771 | 754 | 161.2 |
| B | 12 | 16 | 1026266 | 6519.29 | 784 | 758 | 157.3 |
| B | 4 | 21 | 139106 | 879.5 | 784 | 758 | 157.3 |
| B | 8 | 234 | 45248 | 282.83 | 784 | 758 | 157.3 |
| C | 1 | 16 | 65128 | 347.34 | 785 | 789 | 185.2 |
| C | 15 | 208 | 46484 | 246.69 | 785 | 789 | 185.2 |
| C | 14 | 254 | 29092 | 152.8 | 785 | 789 | 185.2 |
| D | 2 | 165 | 1541952 | 7979.55 | 773 | 750 | 193.1 |
| D | 2 | 249 | 117713 | 605.57 | 773 | 750 | 193.1 |
| D | 14 | 49 | 44014 | 224.0 | 773 | 750 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

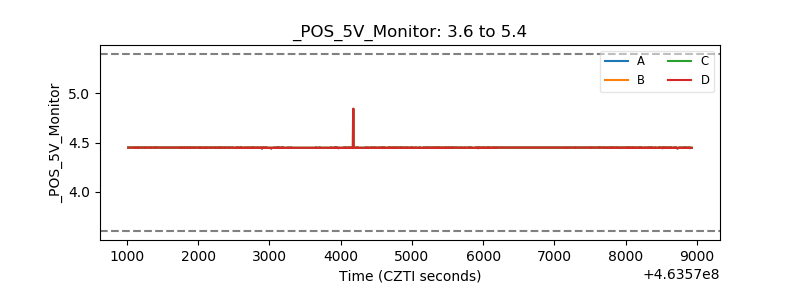

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
