| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48426cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48426cztM0_level2_quad_clean.evt |
| Size (bytes) | 264,386,880 | 56,655,360 |
| Size | 252.1 MB | 54.0 MB |
| Events in quadrant A | 3,944,668 | 360,744 |
| Events in quadrant B | 1,644,524 | 388,600 |
| Events in quadrant C | 1,551,138 | 373,573 |
| Events in quadrant D | 2,360,575 | 333,481 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14222 | 2 |
| B | 0 | 7737 | 0 |
| C | 0 | 7600 | 0 |
| D | 0 | 9819 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3659 | 260 | 7.105767% |
| B | 3660 | 31 | 0.846995% |
| C | 3660 | 5 | 0.136612% |
| D | 3660 | 160 | 4.371585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3659 | 3659 | 102 | 102 | 2.79% | 2.79% |  |
| B | 3660 | 3660 | 6 | 6 | 0.16% | 0.16% |  |
| C | 3660 | 3660 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3660 | 3660 | 129 | 129 | 3.52% | 3.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2123749 | 25242.39 | 391 | 381 | 84.1 |
| A | 13 | 248 | 304536 | 3615.76 | 391 | 381 | 84.1 |
| A | 13 | 254 | 7705 | 87.07 | 391 | 381 | 84.1 |
| B | 12 | 16 | 23660 | 285.0 | 402 | 389 | 81.7 |
| B | 12 | 32 | 13752 | 163.66 | 402 | 389 | 81.7 |
| B | 12 | 111 | 10559 | 124.55 | 402 | 389 | 81.7 |
| C | 15 | 208 | 6204 | 60.83 | 395 | 396 | 95.5 |
| C | 13 | 61 | 2548 | 22.54 | 395 | 396 | 95.5 |
| C | 12 | 2 | 2346 | 20.42 | 395 | 396 | 95.5 |
| D | 12 | 2 | 340233 | 3435.91 | 386 | 373 | 98.9 |
| D | 7 | 96 | 235682 | 2378.93 | 386 | 373 | 98.9 |
| D | 12 | 233 | 80270 | 807.74 | 386 | 373 | 98.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

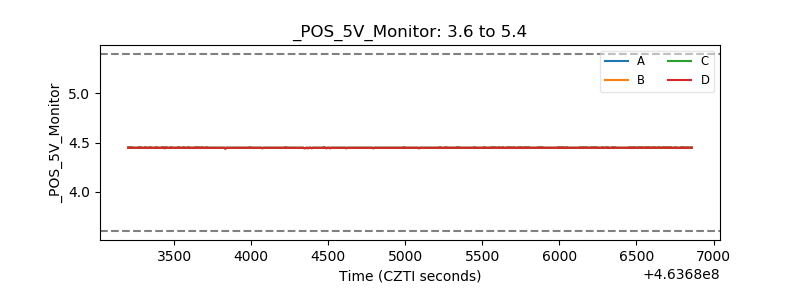

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
