| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48427cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48427cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,356,148,800 | 287,867,520 |
| Size | 1.3 GB | 274.5 MB |
| Events in quadrant A | 18,977,204 | 1,902,438 |
| Events in quadrant B | 10,363,961 | 1,874,560 |
| Events in quadrant C | 8,174,383 | 1,925,135 |
| Events in quadrant D | 11,221,618 | 1,708,398 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68872 | 2 |
| B | 0 | 44918 | 2 |
| C | 0 | 39131 | 2 |
| D | 0 | 47252 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18928 | 895 | 4.728445% |
| B | 18928 | 1161 | 6.133770% |
| C | 18929 | 105 | 0.554704% |
| D | 18929 | 642 | 3.391621% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19918 | 18930 | 145 | 145 | 0.73% | 0.77% |  |
| B | 19918 | 18930 | 519 | 519 | 2.61% | 2.74% |  |
| C | 19919 | 18931 | 13 | 13 | 0.07% | 0.07% |  |
| D | 19919 | 18931 | 379 | 379 | 1.90% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10696202 | 25412.8 | 2021 | 1980 | 420.8 |
| A | 13 | 248 | 402255 | 951.18 | 2021 | 1980 | 420.8 |
| A | 7 | 3 | 60823 | 139.83 | 2021 | 1980 | 420.8 |
| B | 12 | 16 | 2275920 | 5886.91 | 1975 | 1914 | 386.3 |
| B | 5 | 255 | 81796 | 206.8 | 1975 | 1914 | 386.3 |
| B | 12 | 111 | 50340 | 125.36 | 1975 | 1914 | 386.3 |
| C | 12 | 2 | 231597 | 485.64 | 2017 | 2028 | 472.7 |
| C | 15 | 208 | 31587 | 62.53 | 2017 | 2028 | 472.7 |
| C | 14 | 254 | 29004 | 57.07 | 2017 | 2028 | 472.7 |
| D | 2 | 165 | 831558 | 1655.3 | 1985 | 1925 | 501.2 |
| D | 12 | 233 | 779883 | 1552.2 | 1985 | 1925 | 501.2 |
| D | 2 | 249 | 740409 | 1473.44 | 1985 | 1925 | 501.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

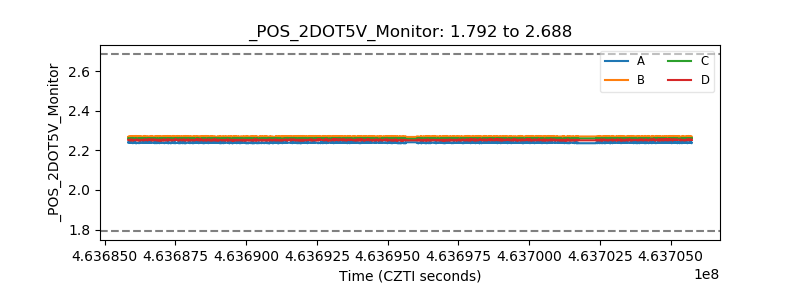

| +2.5 Volts monitor |  |

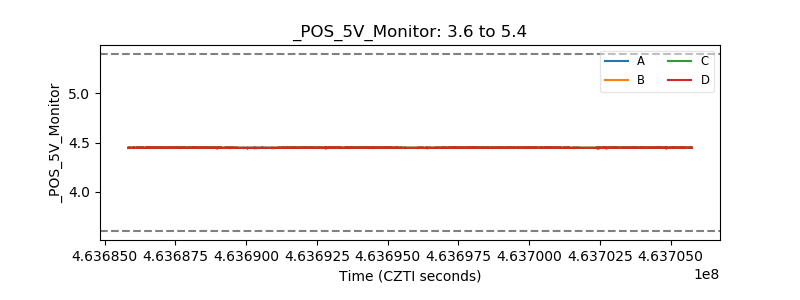

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
