| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48438cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48438cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,554,880 | 121,224,960 |
| Size | 538.4 MB | 115.6 MB |
| Events in quadrant A | 8,271,261 | 789,636 |
| Events in quadrant B | 4,859,621 | 810,306 |
| Events in quadrant C | 3,336,159 | 797,429 |
| Events in quadrant D | 3,826,525 | 730,817 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30434 | 0 |
| B | 0 | 19775 | 0 |
| C | 0 | 15995 | 0 |
| D | 0 | 17134 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7797 | 370 | 4.745415% |
| B | 7796 | 307 | 3.937917% |
| C | 7796 | 15 | 0.192406% |
| D | 7797 | 53 | 0.679749% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 7797 | 98 | 98 | 1.26% | 1.26% |  |
| B | 7796 | 7796 | 115 | 115 | 1.48% | 1.48% |  |
| C | 7796 | 7796 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7797 | 7797 | 41 | 41 | 0.53% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4599362 | 25818.49 | 848 | 829 | 178.1 |
| A | 13 | 248 | 374238 | 2096.51 | 848 | 829 | 178.1 |
| A | 13 | 254 | 15212 | 80.75 | 848 | 829 | 178.1 |
| B | 12 | 16 | 1364803 | 8063.05 | 848 | 821 | 169.2 |
| B | 8 | 234 | 96070 | 563.06 | 848 | 821 | 169.2 |
| B | 12 | 111 | 21575 | 122.69 | 848 | 821 | 169.2 |
| C | 15 | 208 | 26592 | 128.25 | 844 | 849 | 200.7 |
| C | 14 | 254 | 7075 | 31.01 | 844 | 849 | 200.7 |
| C | 12 | 2 | 6265 | 26.98 | 844 | 849 | 200.7 |
| D | 12 | 2 | 108822 | 508.98 | 842 | 813 | 212.2 |
| D | 5 | 222 | 96711 | 451.9 | 842 | 813 | 212.2 |
| D | 5 | 32 | 87881 | 410.29 | 842 | 813 | 212.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

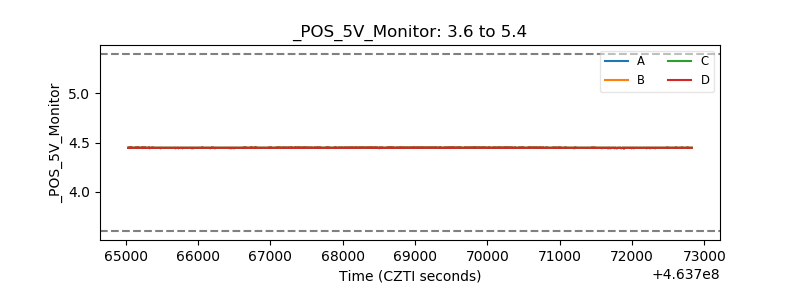

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
