| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48442cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48442cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,044,532,800 | 216,622,080 |
| Size | 996.1 MB | 206.6 MB |
| Events in quadrant A | 14,880,802 | 1,379,097 |
| Events in quadrant B | 6,589,732 | 1,515,306 |
| Events in quadrant C | 6,511,002 | 1,440,353 |
| Events in quadrant D | 9,598,984 | 1,254,764 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53591 | 3 |
| B | 0 | 29717 | 3 |
| C | 0 | 29705 | 3 |
| D | 0 | 38540 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 286 | 0 |
| B | 0 | 286 | 0 |
| C | 0 | 286 | 0 |
| D | 0 | 286 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14032 | 835 | 5.950684% |
| B | 14032 | 109 | 0.776796% |
| C | 14032 | 73 | 0.520239% |
| D | 14033 | 789 | 5.622461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16197 | 14035 | 332 | 332 | 2.05% | 2.37% |  |
| B | 16197 | 14035 | 18 | 18 | 0.11% | 0.13% |  |
| C | 16197 | 14035 | 34 | 34 | 0.21% | 0.24% |  |
| D | 16198 | 14036 | 586 | 586 | 3.62% | 4.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8292240 | 26287.24 | 1508 | 1474 | 315.4 |
| A | 13 | 248 | 690297 | 2184.03 | 1508 | 1474 | 315.4 |
| A | 0 | 31 | 40953 | 125.17 | 1508 | 1474 | 315.4 |
| B | 12 | 16 | 413601 | 1348.72 | 1533 | 1484 | 305.6 |
| B | 0 | 197 | 40577 | 127.94 | 1533 | 1484 | 305.6 |
| B | 12 | 111 | 39240 | 123.56 | 1533 | 1484 | 305.6 |
| C | 12 | 2 | 482687 | 1353.86 | 1511 | 1516 | 355.4 |
| C | 15 | 208 | 44391 | 120.64 | 1511 | 1516 | 355.4 |
| C | 12 | 250 | 38728 | 104.7 | 1511 | 1516 | 355.4 |
| D | 2 | 165 | 1352508 | 3640.2 | 1480 | 1435 | 371.2 |
| D | 2 | 249 | 762851 | 2051.48 | 1480 | 1435 | 371.2 |
| D | 5 | 222 | 497069 | 1335.39 | 1480 | 1435 | 371.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

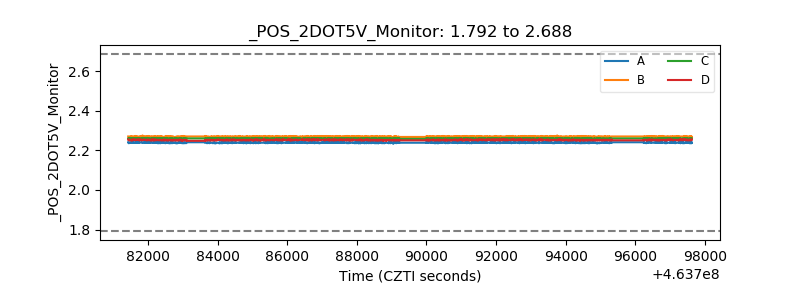

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
