| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48444cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48444cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,012,480 | 112,199,040 |
| Size | 457.8 MB | 107.0 MB |
| Events in quadrant A | 7,534,072 | 724,232 |
| Events in quadrant B | 3,219,727 | 780,137 |
| Events in quadrant C | 3,170,855 | 733,002 |
| Events in quadrant D | 3,299,814 | 671,267 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27103 | 3 |
| B | 0 | 14742 | 2 |
| C | 0 | 14617 | 2 |
| D | 0 | 15101 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7012 | 403 | 5.747290% |
| B | 7012 | 54 | 0.770108% |
| C | 7012 | 65 | 0.926982% |
| D | 7012 | 53 | 0.755847% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8012 | 7013 | 175 | 175 | 2.18% | 2.50% |  |
| B | 8012 | 7013 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8012 | 7013 | 21 | 21 | 0.26% | 0.30% |  |
| D | 8012 | 7013 | 20 | 20 | 0.25% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4282453 | 27019.93 | 754 | 739 | 158.5 |
| A | 13 | 248 | 329683 | 2075.81 | 754 | 739 | 158.5 |
| A | 13 | 254 | 12920 | 76.87 | 754 | 739 | 158.5 |
| B | 12 | 16 | 167830 | 1086.83 | 768 | 744 | 153.7 |
| B | 12 | 111 | 19275 | 120.54 | 768 | 744 | 153.7 |
| B | 11 | 111 | 17983 | 112.13 | 768 | 744 | 153.7 |
| C | 12 | 2 | 130315 | 718.14 | 759 | 763 | 180.4 |
| C | 12 | 250 | 36822 | 199.88 | 759 | 763 | 180.4 |
| C | 14 | 254 | 24887 | 133.72 | 759 | 763 | 180.4 |
| D | 12 | 2 | 103316 | 537.75 | 756 | 734 | 190.8 |
| D | 2 | 165 | 56219 | 290.86 | 756 | 734 | 190.8 |
| D | 2 | 249 | 55239 | 285.72 | 756 | 734 | 190.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

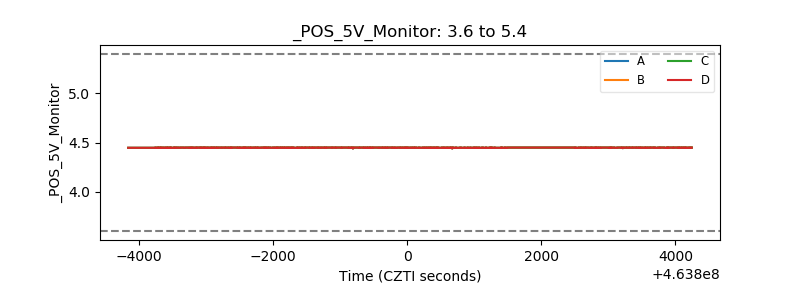

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
