| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48448cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48448cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,150,720 | 96,200,640 |
| Size | 397.8 MB | 91.7 MB |
| Events in quadrant A | 6,344,195 | 620,996 |
| Events in quadrant B | 2,893,535 | 663,664 |
| Events in quadrant C | 2,680,251 | 640,110 |
| Events in quadrant D | 3,067,610 | 577,908 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23493 | 1 |
| B | 0 | 12553 | 1 |
| C | 0 | 12184 | 2 |
| D | 0 | 13005 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5871 | 373 | 6.353262% |
| B | 5872 | 108 | 1.839237% |
| C | 5871 | 48 | 0.817578% |
| D | 5871 | 105 | 1.788452% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6876 | 5872 | 129 | 129 | 1.88% | 2.20% |  |
| B | 6877 | 5873 | 18 | 18 | 0.26% | 0.31% |  |
| C | 6876 | 5872 | 9 | 9 | 0.13% | 0.15% |  |
| D | 6876 | 5872 | 32 | 32 | 0.47% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3366497 | 24357.53 | 661 | 646 | 138.2 |
| A | 13 | 248 | 396567 | 2865.15 | 661 | 646 | 138.2 |
| A | 0 | 31 | 18453 | 128.86 | 661 | 646 | 138.2 |
| B | 12 | 16 | 164978 | 1236.4 | 666 | 646 | 132.9 |
| B | 5 | 255 | 39764 | 294.32 | 666 | 646 | 132.9 |
| B | 0 | 197 | 27338 | 200.83 | 666 | 646 | 132.9 |
| C | 12 | 250 | 55879 | 352.25 | 662 | 666 | 156.7 |
| C | 12 | 2 | 15067 | 91.88 | 662 | 666 | 156.7 |
| C | 14 | 67 | 9253 | 54.78 | 662 | 666 | 156.7 |
| D | 2 | 165 | 154616 | 925.8 | 663 | 643 | 166.3 |
| D | 11 | 224 | 85220 | 508.54 | 663 | 643 | 166.3 |
| D | 12 | 233 | 70502 | 420.05 | 663 | 643 | 166.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

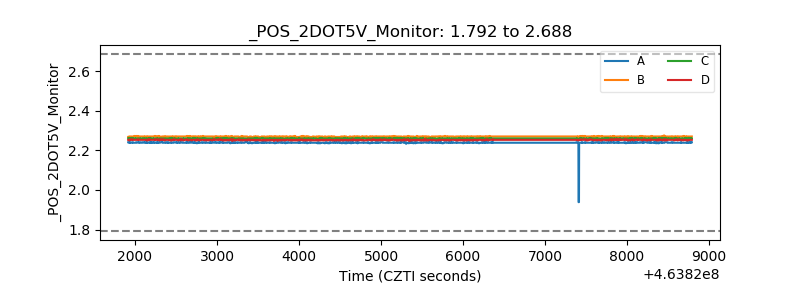

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
