| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48450cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48450cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,271,040 | 117,671,040 |
| Size | 536.2 MB | 112.2 MB |
| Events in quadrant A | 8,345,786 | 749,200 |
| Events in quadrant B | 3,882,438 | 793,877 |
| Events in quadrant C | 3,538,490 | 778,997 |
| Events in quadrant D | 4,448,352 | 703,983 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30805 | 1 |
| B | 0 | 16881 | 2 |
| C | 0 | 16397 | 1 |
| D | 0 | 18691 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7712 | 727 | 9.426867% |
| B | 7711 | 449 | 5.822850% |
| C | 7711 | 296 | 3.838672% |
| D | 7712 | 375 | 4.862552% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 7712 | 139 | 139 | 1.79% | 1.80% |  |
| B | 7766 | 7712 | 14 | 14 | 0.18% | 0.18% |  |
| C | 7766 | 7712 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7767 | 7713 | 57 | 57 | 0.73% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4389109 | 23378.91 | 888 | 868 | 187.7 |
| A | 13 | 248 | 397660 | 2113.96 | 888 | 868 | 187.7 |
| A | 7 | 3 | 67377 | 354.34 | 888 | 868 | 187.7 |
| B | 12 | 16 | 252422 | 1364.35 | 896 | 866 | 184.4 |
| B | 5 | 255 | 40233 | 213.51 | 896 | 866 | 184.4 |
| B | 12 | 111 | 23712 | 123.91 | 896 | 866 | 184.4 |
| C | 12 | 2 | 15224 | 66.45 | 898 | 902 | 215.5 |
| C | 14 | 67 | 11131 | 47.46 | 898 | 902 | 215.5 |
| C | 13 | 61 | 5997 | 23.64 | 898 | 902 | 215.5 |
| D | 11 | 224 | 451756 | 1953.85 | 902 | 873 | 230.8 |
| D | 10 | 199 | 154839 | 667.2 | 902 | 873 | 230.8 |
| D | 2 | 249 | 99257 | 426.34 | 902 | 873 | 230.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

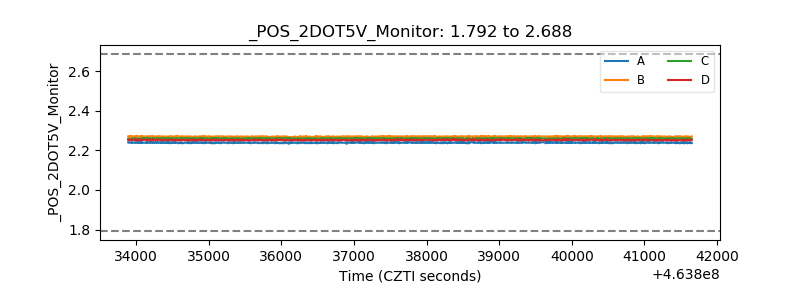

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
