| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48455cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48455cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,769,920 | 122,601,600 |
| Size | 570.1 MB | 116.9 MB |
| Events in quadrant A | 8,249,064 | 796,135 |
| Events in quadrant B | 4,161,744 | 837,713 |
| Events in quadrant C | 3,495,077 | 818,616 |
| Events in quadrant D | 5,617,159 | 716,864 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30190 | 1 |
| B | 0 | 18019 | 2 |
| C | 0 | 16280 | 1 |
| D | 0 | 22356 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7799 | 474 | 6.077702% |
| B | 7799 | 264 | 3.385049% |
| C | 7799 | 27 | 0.346198% |
| D | 7799 | 491 | 6.295679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7814 | 7800 | 57 | 57 | 0.73% | 0.73% |  |
| B | 7814 | 7800 | 83 | 83 | 1.06% | 1.06% |  |
| C | 7814 | 7800 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7814 | 7800 | 367 | 367 | 4.70% | 4.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4597855 | 24615.57 | 887 | 864 | 186.8 |
| A | 13 | 248 | 215842 | 1151.14 | 887 | 864 | 186.8 |
| A | 13 | 254 | 14472 | 72.86 | 887 | 864 | 186.8 |
| B | 12 | 16 | 446503 | 2488.82 | 885 | 855 | 179.1 |
| B | 5 | 255 | 184906 | 1027.87 | 885 | 855 | 179.1 |
| B | 12 | 111 | 22699 | 121.99 | 885 | 855 | 179.1 |
| C | 15 | 208 | 41684 | 194.54 | 881 | 888 | 209.7 |
| C | 14 | 67 | 10751 | 47.03 | 881 | 888 | 209.7 |
| C | 3 | 233 | 7637 | 32.18 | 881 | 888 | 209.7 |
| D | 2 | 249 | 828277 | 3781.02 | 864 | 833 | 218.8 |
| D | 5 | 222 | 485902 | 2216.53 | 864 | 833 | 218.8 |
| D | 12 | 233 | 323417 | 1474.05 | 864 | 833 | 218.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

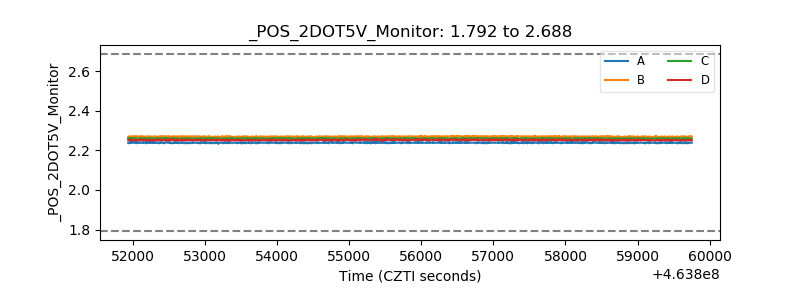

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
