| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48456cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48456cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,390,291,200 | 320,837,760 |
| Size | 1.3 GB | 306.0 MB |
| Events in quadrant A | 19,666,881 | 2,038,815 |
| Events in quadrant B | 9,797,651 | 2,275,509 |
| Events in quadrant C | 9,083,909 | 2,222,790 |
| Events in quadrant D | 11,508,729 | 1,922,580 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70502 | 69 |
| B | 0 | 42516 | 30 |
| C | 0 | 40856 | 30 |
| D | 0 | 47862 | 43 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 370 | 0 |
| B | 0 | 370 | 0 |
| C | 0 | 370 | 0 |
| D | 0 | 370 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18212 | 1301 | 7.143642% |
| B | 18218 | 735 | 4.034471% |
| C | 18217 | 480 | 2.634901% |
| D | 18217 | 990 | 5.434484% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20020 | 18232 | 749 | 749 | 3.74% | 4.11% |  |
| B | 20021 | 18233 | 419 | 419 | 2.09% | 2.30% |  |
| C | 20021 | 18234 | 394 | 394 | 1.97% | 2.16% |  |
| D | 20021 | 18234 | 851 | 851 | 4.25% | 4.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10565610 | 20521.66 | 2334 | 2291 | 514.7 |
| A | 14 | 235 | 67924 | 127.51 | 2334 | 2291 | 514.7 |
| A | 13 | 254 | 37496 | 68.39 | 2334 | 2291 | 514.7 |
| B | 12 | 16 | 271611 | 570.31 | 2291 | 2235 | 472.3 |
| B | 5 | 255 | 210034 | 439.95 | 2291 | 2235 | 472.3 |
| B | 0 | 186 | 143831 | 299.78 | 2291 | 2235 | 472.3 |
| C | 12 | 2 | 94247 | 162.39 | 2262 | 2283 | 566.3 |
| C | 15 | 208 | 71510 | 122.24 | 2262 | 2283 | 566.3 |
| C | 12 | 249 | 52561 | 88.78 | 2262 | 2283 | 566.3 |
| D | 2 | 165 | 626565 | 989.36 | 2317 | 2253 | 631.0 |
| D | 4 | 222 | 507894 | 801.3 | 2317 | 2253 | 631.0 |
| D | 2 | 249 | 486599 | 767.55 | 2317 | 2253 | 631.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

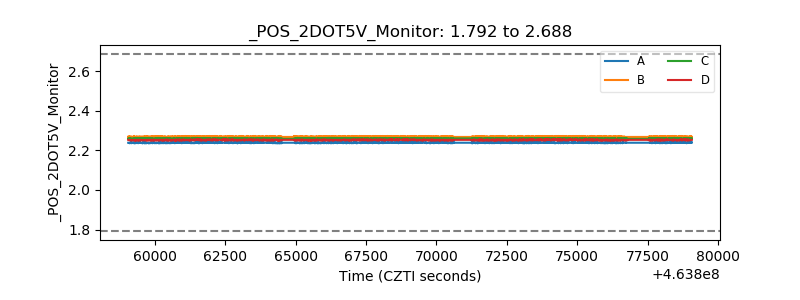

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
