| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48460cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48460cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,368,000 | 113,526,720 |
| Size | 439.0 MB | 108.3 MB |
| Events in quadrant A | 7,074,766 | 743,466 |
| Events in quadrant B | 3,285,150 | 783,206 |
| Events in quadrant C | 2,991,965 | 750,831 |
| Events in quadrant D | 3,160,281 | 685,132 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26028 | 2 |
| B | 0 | 14609 | 2 |
| C | 0 | 13949 | 2 |
| D | 0 | 14448 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6817 | 247 | 3.623295% |
| B | 6817 | 97 | 1.422913% |
| C | 6817 | 27 | 0.396069% |
| D | 6817 | 32 | 0.469415% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7897 | 6818 | 77 | 77 | 0.98% | 1.13% |  |
| B | 7897 | 6818 | 29 | 29 | 0.37% | 0.43% |  |
| C | 7897 | 6818 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7897 | 6818 | 7 | 7 | 0.09% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4133603 | 26255.21 | 756 | 742 | 157.4 |
| A | 13 | 254 | 13311 | 79.85 | 756 | 742 | 157.4 |
| A | 13 | 248 | 10963 | 64.93 | 756 | 742 | 157.4 |
| B | 0 | 186 | 158816 | 1050.94 | 761 | 738 | 150.4 |
| B | 12 | 16 | 47999 | 314.2 | 761 | 738 | 150.4 |
| B | 5 | 255 | 36508 | 237.81 | 761 | 738 | 150.4 |
| C | 12 | 249 | 9225 | 46.7 | 761 | 765 | 181.1 |
| C | 12 | 250 | 7380 | 36.52 | 761 | 765 | 181.1 |
| C | 12 | 2 | 6432 | 31.28 | 761 | 765 | 181.1 |
| D | 5 | 222 | 81065 | 421.24 | 757 | 735 | 190.7 |
| D | 2 | 249 | 72713 | 377.45 | 757 | 735 | 190.7 |
| D | 7 | 38 | 39875 | 205.25 | 757 | 735 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

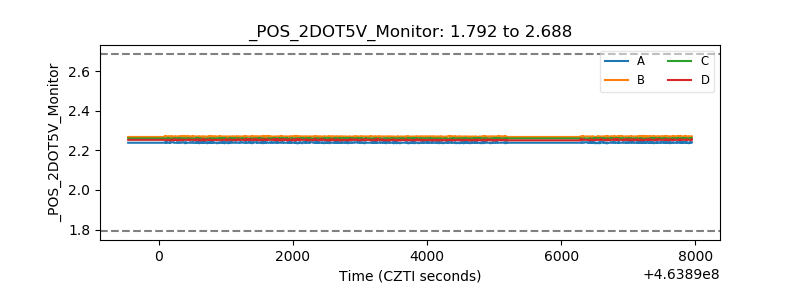

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
