| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48461cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48461cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,799,680 | 100,794,240 |
| Size | 392.7 MB | 96.1 MB |
| Events in quadrant A | 6,196,134 | 663,702 |
| Events in quadrant B | 2,898,035 | 693,421 |
| Events in quadrant C | 2,831,091 | 663,009 |
| Events in quadrant D | 2,842,823 | 605,019 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23135 | 1 |
| B | 0 | 12925 | 2 |
| C | 0 | 12952 | 1 |
| D | 0 | 12872 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6119 | 164 | 2.680176% |
| B | 6119 | 81 | 1.323746% |
| C | 6119 | 64 | 1.045923% |
| D | 6119 | 41 | 0.670044% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7214 | 6119 | 17 | 17 | 0.24% | 0.28% |  |
| B | 7214 | 6119 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7214 | 6120 | 34 | 34 | 0.47% | 0.56% |  |
| D | 7214 | 6120 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3542364 | 24766.44 | 684 | 670 | 143.0 |
| A | 13 | 254 | 12617 | 83.54 | 684 | 670 | 143.0 |
| A | 3 | 137 | 7966 | 51.02 | 684 | 670 | 143.0 |
| B | 12 | 16 | 101385 | 743.53 | 683 | 662 | 135.5 |
| B | 8 | 234 | 42338 | 307.65 | 683 | 662 | 135.5 |
| B | 0 | 186 | 20264 | 144.7 | 683 | 662 | 135.5 |
| C | 12 | 2 | 108633 | 669.82 | 677 | 681 | 161.2 |
| C | 15 | 208 | 35073 | 213.4 | 677 | 681 | 161.2 |
| C | 12 | 250 | 17151 | 102.19 | 677 | 681 | 161.2 |
| D | 5 | 222 | 87548 | 510.65 | 681 | 661 | 170.1 |
| D | 2 | 249 | 79577 | 463.81 | 681 | 661 | 170.1 |
| D | 2 | 234 | 27886 | 160.01 | 681 | 661 | 170.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

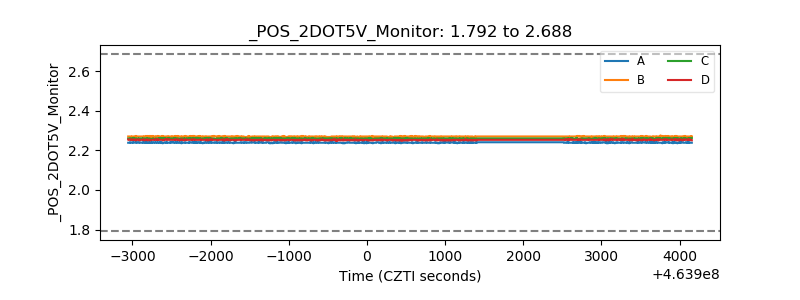

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
