| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48462cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48462cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,571,200 | 101,790,720 |
| Size | 406.8 MB | 97.1 MB |
| Events in quadrant A | 6,378,147 | 669,611 |
| Events in quadrant B | 2,930,571 | 699,646 |
| Events in quadrant C | 2,810,343 | 671,922 |
| Events in quadrant D | 3,187,042 | 606,136 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23918 | 2 |
| B | 0 | 13078 | 1 |
| C | 0 | 12935 | 1 |
| D | 0 | 13901 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6233 | 225 | 3.609819% |
| B | 6233 | 108 | 1.732713% |
| C | 6233 | 61 | 0.978662% |
| D | 6234 | 134 | 2.149503% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7248 | 6233 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7248 | 6233 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7248 | 6234 | 4 | 4 | 0.06% | 0.06% |  |
| D | 7249 | 6234 | 43 | 43 | 0.59% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3637548 | 24648.4 | 702 | 687 | 147.5 |
| A | 13 | 248 | 13342 | 85.76 | 702 | 687 | 147.5 |
| A | 13 | 254 | 11868 | 75.77 | 702 | 687 | 147.5 |
| B | 12 | 16 | 56220 | 400.37 | 700 | 679 | 138.7 |
| B | 5 | 255 | 35814 | 253.27 | 700 | 679 | 138.7 |
| B | 0 | 186 | 17550 | 121.62 | 700 | 679 | 138.7 |
| C | 15 | 208 | 23918 | 140.18 | 698 | 701 | 165.6 |
| C | 12 | 2 | 23226 | 136.0 | 698 | 701 | 165.6 |
| C | 12 | 249 | 21313 | 124.45 | 698 | 701 | 165.6 |
| D | 12 | 2 | 158630 | 901.06 | 698 | 677 | 175.3 |
| D | 10 | 199 | 128484 | 729.09 | 698 | 677 | 175.3 |
| D | 5 | 222 | 53192 | 299.58 | 698 | 677 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

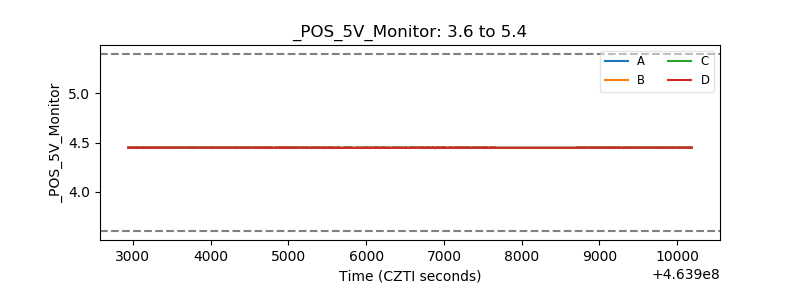

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
