| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_029T01_9000006426_48467cztM0_level2.fits | modeM0/AS1A13_029T01_9000006426_48467cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,233,600 | 113,181,120 |
| Size | 553.4 MB | 107.9 MB |
| Events in quadrant A | 7,639,509 | 768,899 |
| Events in quadrant B | 6,176,080 | 666,950 |
| Events in quadrant C | 3,330,457 | 768,824 |
| Events in quadrant D | 3,753,343 | 702,715 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28119 | 0 |
| B | 0 | 23752 | 0 |
| C | 0 | 15664 | 0 |
| D | 0 | 16738 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7462 | 274 | 3.671938% |
| B | 7462 | 1429 | 19.150362% |
| C | 7462 | 25 | 0.335031% |
| D | 7462 | 91 | 1.219512% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7462 | 7462 | 24 | 24 | 0.32% | 0.32% |  |
| B | 7462 | 7462 | 951 | 951 | 12.74% | 12.74% |  |
| C | 7462 | 7462 | 16 | 16 | 0.21% | 0.21% |  |
| D | 7462 | 7462 | 61 | 61 | 0.82% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4305354 | 24649.18 | 824 | 805 | 174.6 |
| A | 7 | 3 | 140905 | 802.26 | 824 | 805 | 174.6 |
| A | 13 | 254 | 14516 | 78.51 | 824 | 805 | 174.6 |
| B | 12 | 16 | 3119946 | 20909.41 | 747 | 722 | 149.2 |
| B | 4 | 21 | 26791 | 174.75 | 747 | 722 | 149.2 |
| B | 5 | 171 | 25262 | 164.5 | 747 | 722 | 149.2 |
| C | 15 | 208 | 87549 | 450.5 | 809 | 812 | 192.5 |
| C | 12 | 250 | 23240 | 116.49 | 809 | 812 | 192.5 |
| C | 12 | 2 | 22320 | 111.71 | 809 | 812 | 192.5 |
| D | 7 | 96 | 199797 | 968.35 | 811 | 786 | 205.5 |
| D | 12 | 233 | 137713 | 666.26 | 811 | 786 | 205.5 |
| D | 2 | 249 | 109546 | 529.2 | 811 | 786 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

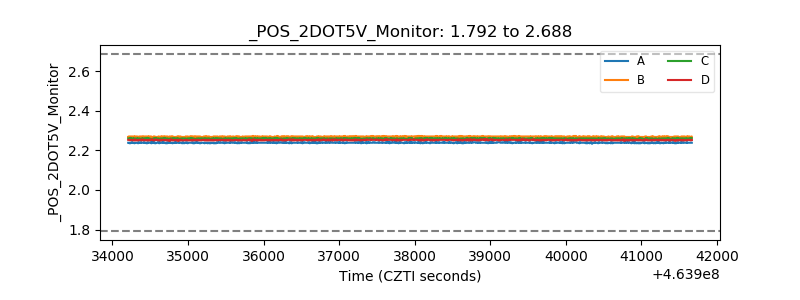

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
