| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48476cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48476cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,896,960 | 96,940,800 |
| Size | 453.9 MB | 92.4 MB |
| Events in quadrant A | 6,225,718 | 651,537 |
| Events in quadrant B | 3,004,053 | 677,186 |
| Events in quadrant C | 2,565,246 | 653,843 |
| Events in quadrant D | 5,344,362 | 523,922 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23136 | 1 |
| B | 0 | 13492 | 1 |
| C | 0 | 12480 | 1 |
| D | 0 | 20330 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6140 | 193 | 3.143322% |
| B | 6139 | 171 | 2.785470% |
| C | 6139 | 25 | 0.407232% |
| D | 6140 | 794 | 12.931596% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7270 | 6140 | 19 | 19 | 0.26% | 0.31% |  |
| B | 7269 | 6139 | 93 | 93 | 1.28% | 1.51% |  |
| C | 7269 | 6140 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7270 | 6141 | 741 | 741 | 10.19% | 12.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3662440 | 26811.83 | 658 | 645 | 136.6 |
| A | 13 | 254 | 11262 | 77.74 | 658 | 645 | 136.6 |
| A | 10 | 255 | 10796 | 74.33 | 658 | 645 | 136.6 |
| B | 0 | 186 | 296085 | 2290.43 | 660 | 638 | 129.0 |
| B | 12 | 16 | 50861 | 389.35 | 660 | 638 | 129.0 |
| B | 8 | 234 | 33388 | 253.89 | 660 | 638 | 129.0 |
| C | 12 | 2 | 22451 | 144.36 | 647 | 648 | 151.0 |
| C | 14 | 67 | 7247 | 43.69 | 647 | 648 | 151.0 |
| C | 14 | 254 | 6150 | 36.43 | 647 | 648 | 151.0 |
| D | 2 | 165 | 1520368 | 10207.41 | 603 | 584 | 148.9 |
| D | 7 | 38 | 1419691 | 9531.23 | 603 | 584 | 148.9 |
| D | 2 | 249 | 29465 | 193.98 | 603 | 584 | 148.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

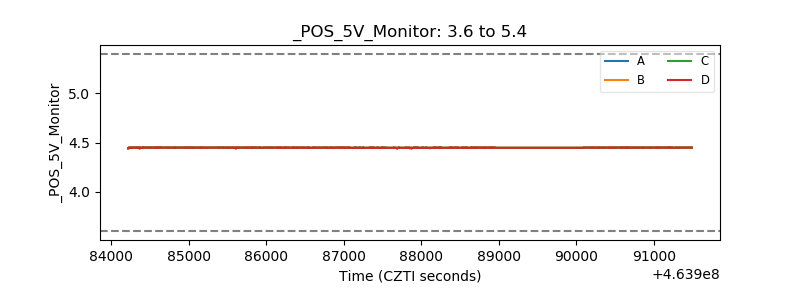

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
