| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48477cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48477cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,273,920 | 106,580,160 |
| Size | 441.8 MB | 101.6 MB |
| Events in quadrant A | 6,825,565 | 690,356 |
| Events in quadrant B | 3,022,009 | 737,435 |
| Events in quadrant C | 2,788,864 | 702,894 |
| Events in quadrant D | 3,998,230 | 634,924 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25284 | 3 |
| B | 0 | 13958 | 2 |
| C | 0 | 13511 | 2 |
| D | 0 | 16820 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6622 | 301 | 4.545455% |
| B | 6622 | 121 | 1.827243% |
| C | 6622 | 45 | 0.679553% |
| D | 6622 | 130 | 1.963153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6622 | 18 | 18 | 0.23% | 0.27% |  |
| B | 7662 | 6622 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7662 | 6623 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7662 | 6623 | 76 | 76 | 0.99% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4074840 | 27712.75 | 710 | 694 | 147.0 |
| A | 13 | 254 | 12216 | 78.37 | 710 | 694 | 147.0 |
| A | 3 | 137 | 8085 | 50.27 | 710 | 694 | 147.0 |
| B | 8 | 234 | 118183 | 831.48 | 720 | 698 | 141.3 |
| B | 12 | 16 | 35746 | 248.05 | 720 | 698 | 141.3 |
| B | 12 | 111 | 17980 | 122.31 | 720 | 698 | 141.3 |
| C | 12 | 2 | 18112 | 106.03 | 704 | 705 | 164.2 |
| C | 14 | 67 | 9884 | 55.91 | 704 | 705 | 164.2 |
| C | 3 | 233 | 6023 | 32.39 | 704 | 705 | 164.2 |
| D | 2 | 165 | 623072 | 3594.79 | 699 | 675 | 173.1 |
| D | 7 | 38 | 313454 | 1806.52 | 699 | 675 | 173.1 |
| D | 2 | 249 | 232647 | 1339.8 | 699 | 675 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

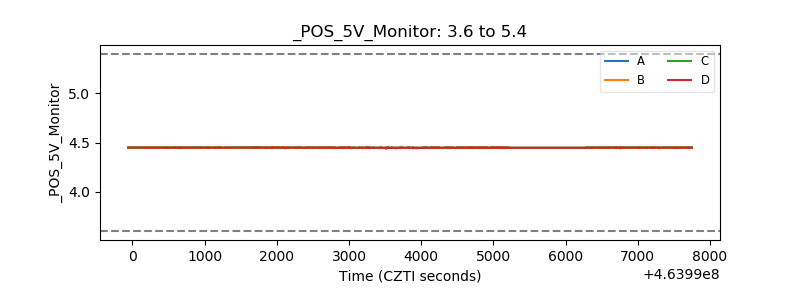

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
