| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48485cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48485cztM0_level2_quad_clean.evt |
| Size (bytes) | 883,661,760 | 201,885,120 |
| Size | 842.7 MB | 192.5 MB |
| Events in quadrant A | 13,863,007 | 1,302,711 |
| Events in quadrant B | 6,073,121 | 1,382,565 |
| Events in quadrant C | 5,468,864 | 1,315,765 |
| Events in quadrant D | 6,295,127 | 1,209,411 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49966 | 3 |
| B | 0 | 27808 | 4 |
| C | 0 | 26652 | 3 |
| D | 0 | 28817 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 266 | 0 |
| B | 0 | 266 | 0 |
| C | 0 | 266 | 0 |
| D | 0 | 266 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13055 | 530 | 4.059747% |
| B | 13055 | 157 | 1.202604% |
| C | 13055 | 70 | 0.536193% |
| D | 13055 | 158 | 1.210264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14885 | 13057 | 144 | 144 | 0.97% | 1.10% |  |
| B | 14885 | 13057 | 35 | 35 | 0.24% | 0.27% |  |
| C | 14885 | 13057 | 1 | 1 | 0.01% | 0.01% |  |
| D | 14885 | 13058 | 110 | 110 | 0.74% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8106555 | 28258.85 | 1377 | 1345 | 286.8 |
| A | 12 | 189 | 368726 | 1280.88 | 1377 | 1345 | 286.8 |
| A | 15 | 192 | 29836 | 99.33 | 1377 | 1345 | 286.8 |
| B | 12 | 18 | 114429 | 416.8 | 1386 | 1343 | 271.3 |
| B | 0 | 197 | 90881 | 330.01 | 1386 | 1343 | 271.3 |
| B | 8 | 234 | 83347 | 302.24 | 1386 | 1343 | 271.3 |
| C | 12 | 2 | 26618 | 78.22 | 1373 | 1376 | 322.7 |
| C | 14 | 254 | 21029 | 60.9 | 1373 | 1376 | 322.7 |
| C | 14 | 246 | 18135 | 51.93 | 1373 | 1376 | 322.7 |
| D | 2 | 249 | 393198 | 1148.68 | 1370 | 1327 | 341.1 |
| D | 2 | 120 | 199414 | 580.65 | 1370 | 1327 | 341.1 |
| D | 12 | 233 | 100359 | 290.29 | 1370 | 1327 | 341.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

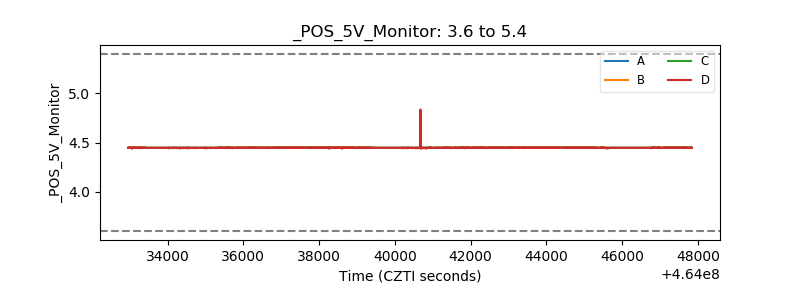

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
