| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48486cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48486cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,458,560 | 106,813,440 |
| Size | 437.2 MB | 101.9 MB |
| Events in quadrant A | 7,157,081 | 689,582 |
| Events in quadrant B | 3,243,244 | 728,698 |
| Events in quadrant C | 2,847,960 | 699,181 |
| Events in quadrant D | 3,193,440 | 641,695 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25696 | 2 |
| B | 0 | 14814 | 2 |
| C | 0 | 13884 | 2 |
| D | 0 | 14848 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6809 | 308 | 4.523425% |
| B | 6810 | 127 | 1.864905% |
| C | 6810 | 34 | 0.499266% |
| D | 6810 | 61 | 0.895742% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8559 | 6809 | 146 | 146 | 1.71% | 2.14% |  |
| B | 8560 | 6810 | 54 | 54 | 0.63% | 0.79% |  |
| C | 8560 | 6811 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8560 | 6812 | 63 | 63 | 0.74% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4222787 | 28388.38 | 709 | 693 | 148.7 |
| A | 12 | 189 | 175225 | 1173.51 | 709 | 693 | 148.7 |
| A | 13 | 254 | 13037 | 83.0 | 709 | 693 | 148.7 |
| B | 0 | 186 | 226777 | 1590.0 | 716 | 694 | 142.2 |
| B | 5 | 255 | 65937 | 458.84 | 716 | 694 | 142.2 |
| B | 5 | 171 | 31382 | 215.82 | 716 | 694 | 142.2 |
| C | 1 | 3 | 31184 | 182.39 | 710 | 714 | 167.1 |
| C | 3 | 233 | 30463 | 178.08 | 710 | 714 | 167.1 |
| C | 14 | 254 | 11034 | 61.78 | 710 | 714 | 167.1 |
| D | 10 | 199 | 151404 | 849.08 | 705 | 681 | 177.5 |
| D | 5 | 171 | 86581 | 483.91 | 705 | 681 | 177.5 |
| D | 2 | 120 | 67703 | 377.56 | 705 | 681 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

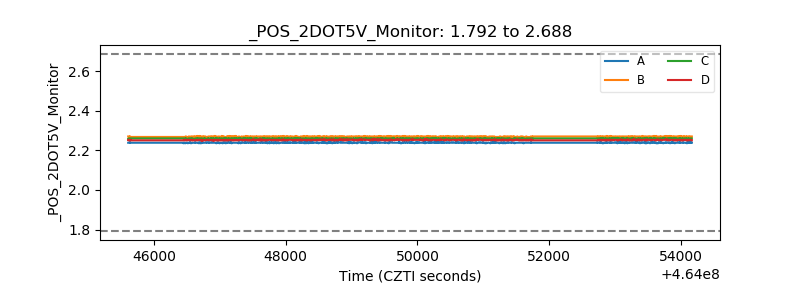

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
