| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48493cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48493cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,235,840 | 103,884,480 |
| Size | 425.6 MB | 99.1 MB |
| Events in quadrant A | 6,750,501 | 675,067 |
| Events in quadrant B | 2,936,751 | 714,256 |
| Events in quadrant C | 2,879,803 | 678,124 |
| Events in quadrant D | 3,426,878 | 608,054 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25262 | 1 |
| B | 0 | 13878 | 1 |
| C | 0 | 14026 | 1 |
| D | 0 | 15403 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6743 | 344 | 5.101587% |
| B | 6744 | 191 | 2.832147% |
| C | 6744 | 116 | 1.720047% |
| D | 6744 | 260 | 3.855279% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7293 | 6743 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7294 | 6744 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7294 | 6744 | 23 | 23 | 0.32% | 0.34% |  |
| D | 7294 | 6744 | 119 | 119 | 1.63% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3818131 | 25680.31 | 709 | 692 | 148.7 |
| A | 12 | 189 | 171935 | 1151.97 | 709 | 692 | 148.7 |
| A | 13 | 254 | 12906 | 82.16 | 709 | 692 | 148.7 |
| B | 12 | 16 | 61707 | 433.2 | 715 | 692 | 140.8 |
| B | 5 | 255 | 24129 | 166.4 | 715 | 692 | 140.8 |
| B | 12 | 111 | 18239 | 124.58 | 715 | 692 | 140.8 |
| C | 1 | 3 | 136336 | 829.84 | 698 | 700 | 163.4 |
| C | 14 | 67 | 7811 | 43.51 | 698 | 700 | 163.4 |
| C | 3 | 233 | 7039 | 38.78 | 698 | 700 | 163.4 |
| D | 7 | 38 | 377892 | 2149.46 | 694 | 670 | 175.5 |
| D | 2 | 249 | 259695 | 1475.96 | 694 | 670 | 175.5 |
| D | 2 | 233 | 36564 | 204.53 | 694 | 670 | 175.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

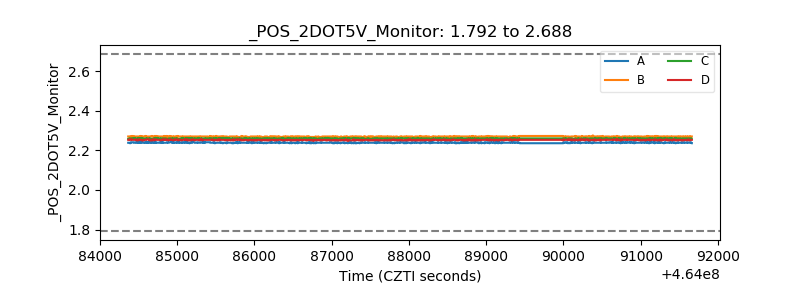

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
