| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006428_48494cztM0_level2.fits | modeM0/AS1A13_081T01_9000006428_48494cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,115,520 | 118,889,280 |
| Size | 484.6 MB | 113.4 MB |
| Events in quadrant A | 7,622,517 | 778,868 |
| Events in quadrant B | 3,420,399 | 817,224 |
| Events in quadrant C | 3,566,344 | 767,722 |
| Events in quadrant D | 3,608,625 | 705,750 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28765 | 0 |
| B | 0 | 15905 | 0 |
| C | 0 | 16640 | 0 |
| D | 0 | 16605 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7615 | 261 | 3.427446% |
| B | 7615 | 91 | 1.195010% |
| C | 7615 | 77 | 1.011162% |
| D | 7616 | 73 | 0.958508% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 7615 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7615 | 7615 | 26 | 26 | 0.34% | 0.34% |  |
| C | 7615 | 7615 | 67 | 67 | 0.88% | 0.88% |  |
| D | 7616 | 7616 | 62 | 62 | 0.81% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4276527 | 25027.49 | 815 | 796 | 170.8 |
| A | 12 | 189 | 154573 | 900.11 | 815 | 796 | 170.8 |
| A | 7 | 3 | 26502 | 150.46 | 815 | 796 | 170.8 |
| B | 12 | 16 | 83217 | 510.84 | 812 | 783 | 161.4 |
| B | 5 | 255 | 44356 | 270.02 | 812 | 783 | 161.4 |
| B | 12 | 111 | 20663 | 123.2 | 812 | 783 | 161.4 |
| C | 1 | 3 | 411025 | 2198.65 | 794 | 794 | 186.6 |
| C | 14 | 254 | 26296 | 136.68 | 794 | 794 | 186.6 |
| C | 0 | 207 | 22224 | 114.86 | 794 | 794 | 186.6 |
| D | 2 | 249 | 141408 | 710.31 | 797 | 770 | 198.0 |
| D | 7 | 96 | 126692 | 635.99 | 797 | 770 | 198.0 |
| D | 12 | 2 | 102083 | 511.7 | 797 | 770 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

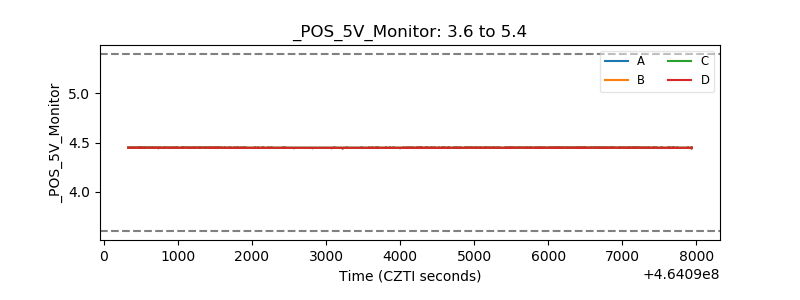

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
